What Are Transparent PVC (CLEAR-PVC) Pipes Used For? Selection, Applications, And Advantages

What is Transparent PVC (CLEAR-PVC) Pipe?

Transparent PVC (also commonly referred to as CLEAR-PVC or Clear UPVC) is a specially formulated rigid polyvinyl chloride pipe material. It retains the corrosion resistance and lightweight, easy-to-install advantages of regular UPVC, while achieving high transparency through a special manufacturing process, allowing you to clearly see the flow, bubbles, or impurities inside the pipe.

Compared to ordinary opaque UPVC pipes, the key difference of transparent PVC lies in its visibility, while still meeting international standards such as SCH40 and ASTM D1785, making it suitable for industrial fluid transport.

Huasheng Pipe’s transparent PVC series is strictly manufactured according to SCH40 ASTM D1785 standards, covering pipes, 45°/90° elbows, tees, couplings, and male adapters, providing customers with a complete transparent piping system solution.

Core Advantages of Transparent PVC Pipes

Transparent PVC is increasingly chosen across industries because it addresses issues that traditional opaque pipes cannot, while offering excellent cost-performance.

1. Visual Fluid Monitoring – Reduce Operation Risks: The most significant advantage of transparent PVC is the ability to visually monitor the flow of fluids. You can quickly detect blockages, leaks, bubbles, or sediment without disassembling the pipe, greatly reducing maintenance costs and downtime.

2. Excellent Chemical Resistance: Like standard UPVC, transparent PVC is resistant to most acids, alkalis, salts, and chemical reagents, making it suitable for transporting corrosive fluids. It does not rust or easily scale.

3. Lightweight and Easy to Install: Transparent PVC pipes are lightweight and use solvent welding for installation. No welding or special tools are required, significantly reducing installation time and cost.

4. Cost-Effective: Compared with glass, transparent stainless steel, or acrylic pipes, transparent PVC is more affordable while balancing transparency and mechanical strength, making it a high-value choice for industrial visual piping systems.

Typical Applications of Transparent PVC Pipes

Thanks to its characteristics, transparent PVC has irreplaceable applications across multiple industries:

1. Water Treatment and Pure Water Systems: Reverse osmosis systems, filtration devices, and pure/ultrapure water pipelines allow real-time monitoring of filtration effectiveness and water quality.

2. Chemical and Laboratory Applications: Transporting reagents, connecting laboratory apparatus, and reaction vessels make it easier to observe reactions and fluid status.

3. Food, Beverage, and Pharmaceutical Industry: Material transport and cleaning verification pipelines quickly identify impurities or contamination, ensuring production safety.

4. Agriculture and Aquaculture: Aquaculture circulation systems, irrigation, and filtration equipment enable clear observation of water flow and debris.

5. Education and Demonstration: Fluid mechanics teaching setups and industrial process demonstration systems make training more intuitive.

Selection Guide for Transparent PVC Pipes and Fittings

Choosing the right transparent PVC pipe ensures it meets your operational requirements. Here are key considerations:

Pipe Selection: Understanding SCH40 and ASTM D1785 Standards

SCH40 is one of the most commonly used pressure ratings in industrial piping. Huasheng transparent PVC pipes are manufactured strictly according to ASTM D1785, ensuring dimensional accuracy, consistent pressure ratings, and material performance, and can be perfectly matched with corresponding fittings.

How to Match Transparent PVC Fittings

A complete piping system requires compatible fittings for stable installation and sealing:

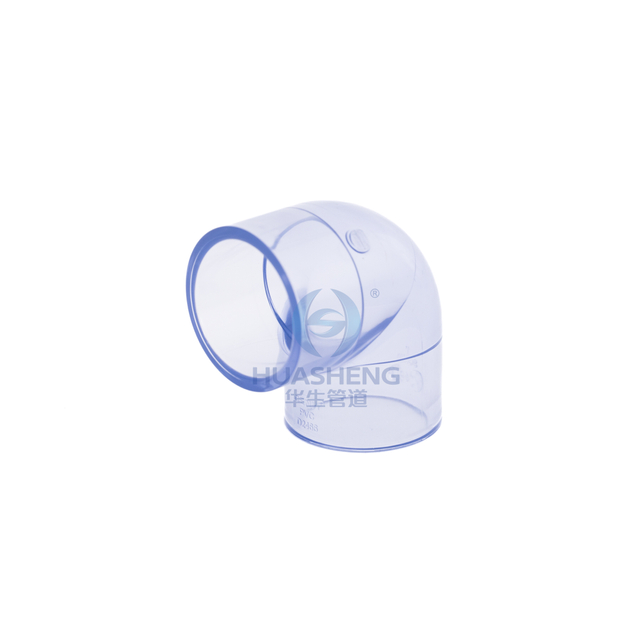

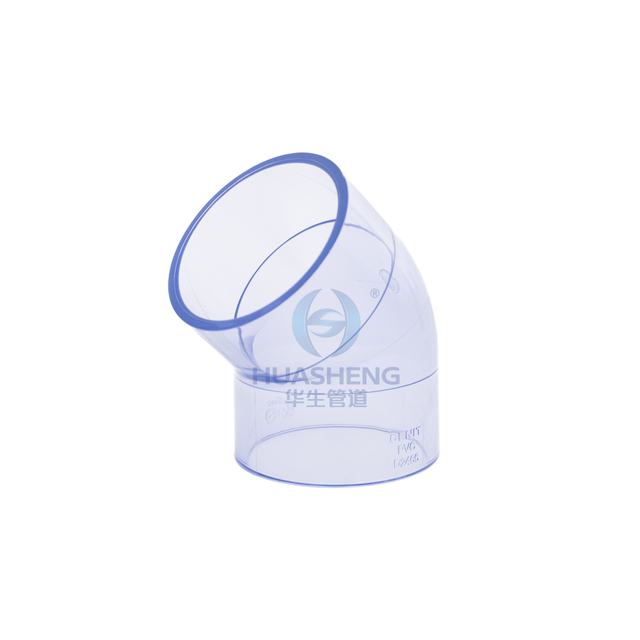

• Elbows (45°/90°): Change pipe direction to fit different installation spaces. Huasheng offers SCH40 transparent PVC 45° and 90° elbows, fully compatible with pipes.

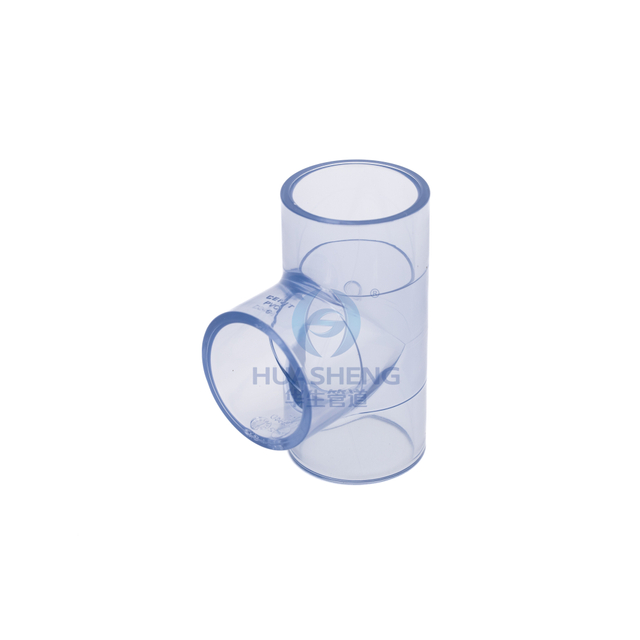

• Tees: For splitting or combining flows, Huasheng SCH40 equal tees provide stable fluid distribution.

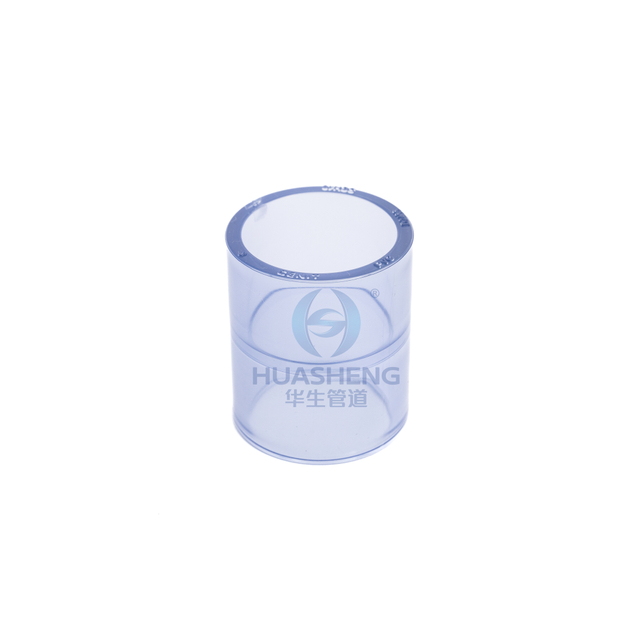

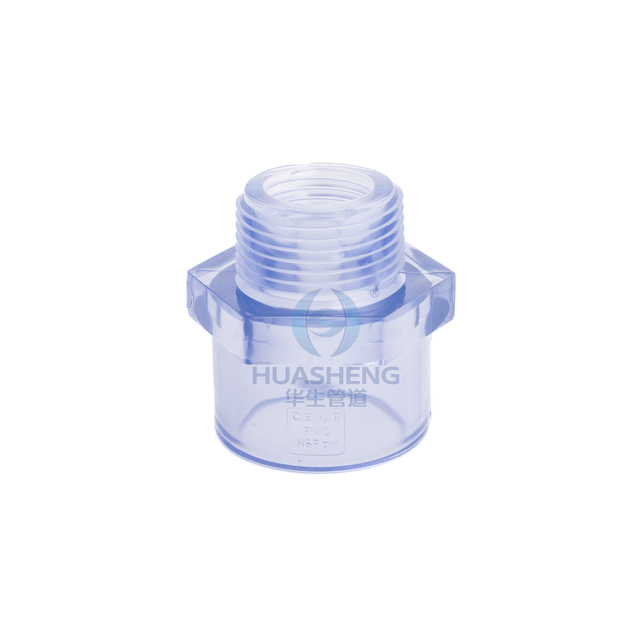

• Couplings / Adapters: Connect or transition pipes. Huasheng SCH40 couplings and male adapters meet various connection needs.

Pressure and Temperature Limits

Transparent PVC is generally not suitable for continuous use above 60°C. Working pressure should be selected according to SCH40 standards and pipe diameter. High temperature or high-pressure applications are not recommended. Additionally, long-term exposure to strong UV light can cause aging, yellowing, and reduced transparency.

Transparent PVC vs. Transparent PP / Acrylic: How to Choose?

• If you need a balance of transparency, chemical resistance, and cost-effectiveness, transparent PVC is the best choice.

• For higher temperatures (above 60°C), consider transparent PP pipes.

• For extremely high transparency and mechanical strength, acrylic pipes are an option, though more expensive and less chemically resistant than PVC.

Installation and Usage Notes for Transparent PVC Pipes

1. Solvent Welding Tips: Use dedicated PVC glue. Clean the pipe and fittings before installation to remove oil and debris. Allow sufficient curing time before running fluid to prevent leaks.

2. Check Fluid Compatibility: Although transparent PVC is chemically resistant, confirm that the transported fluid is compatible to avoid long-term exposure to strong oxidizers or incompatible substances.

3. Avoid Direct UV Exposure: Long-term sunlight accelerates aging; outdoor use should include shading.

4. Prevent Mechanical Impact: Transparent PVC is slightly more brittle than standard UPVC. Avoid strong impacts during installation or operation.

Huasheng Pipe Transparent PVC (CLEAR-PVC) Series

Huasheng Pipe’s transparent PVC series provides a one-stop piping solution:

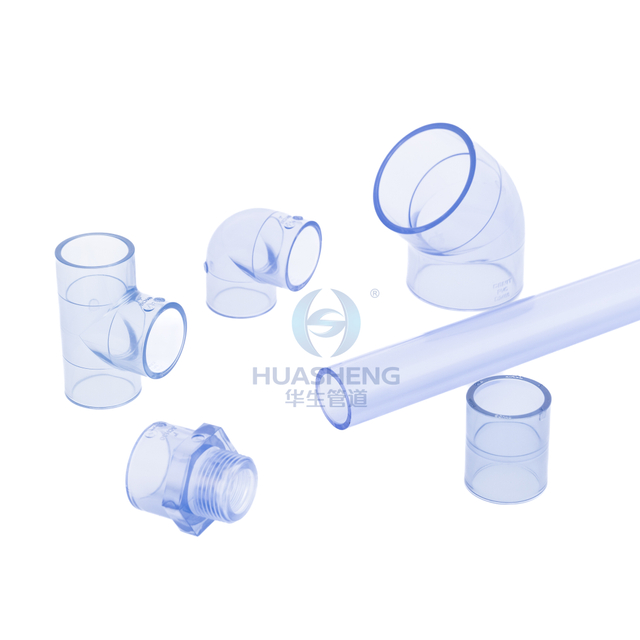

1. Complete Product Range: Covering SCH40 ASTM D1785 standard pipes, 45°/90° elbows, tees, couplings, and male adapters.

2. Strict Quality Control: All products meet international standards with high dimensional accuracy and perfect fit.

3. Customized Services: Support for different sizes and bulk orders, providing tailored piping solutions for your projects.

Conclusion: When is Transparent PVC Worth Choosing?

In short, if you need to visually monitor the piping system while requiring corrosion resistance, easy installation, and cost-effectiveness, transparent PVC pipes are the ideal choice. They help reduce maintenance costs, minimize operational risks, and are suitable for water treatment, chemical, laboratory, and other industries.

If you are looking for a transparent PVC piping system solution, contact Huasheng Pipe for professional selection advice and product services.
