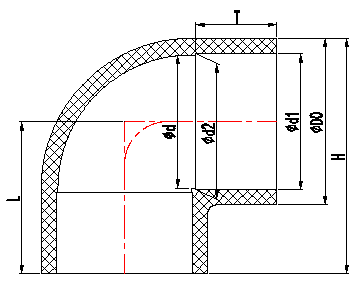

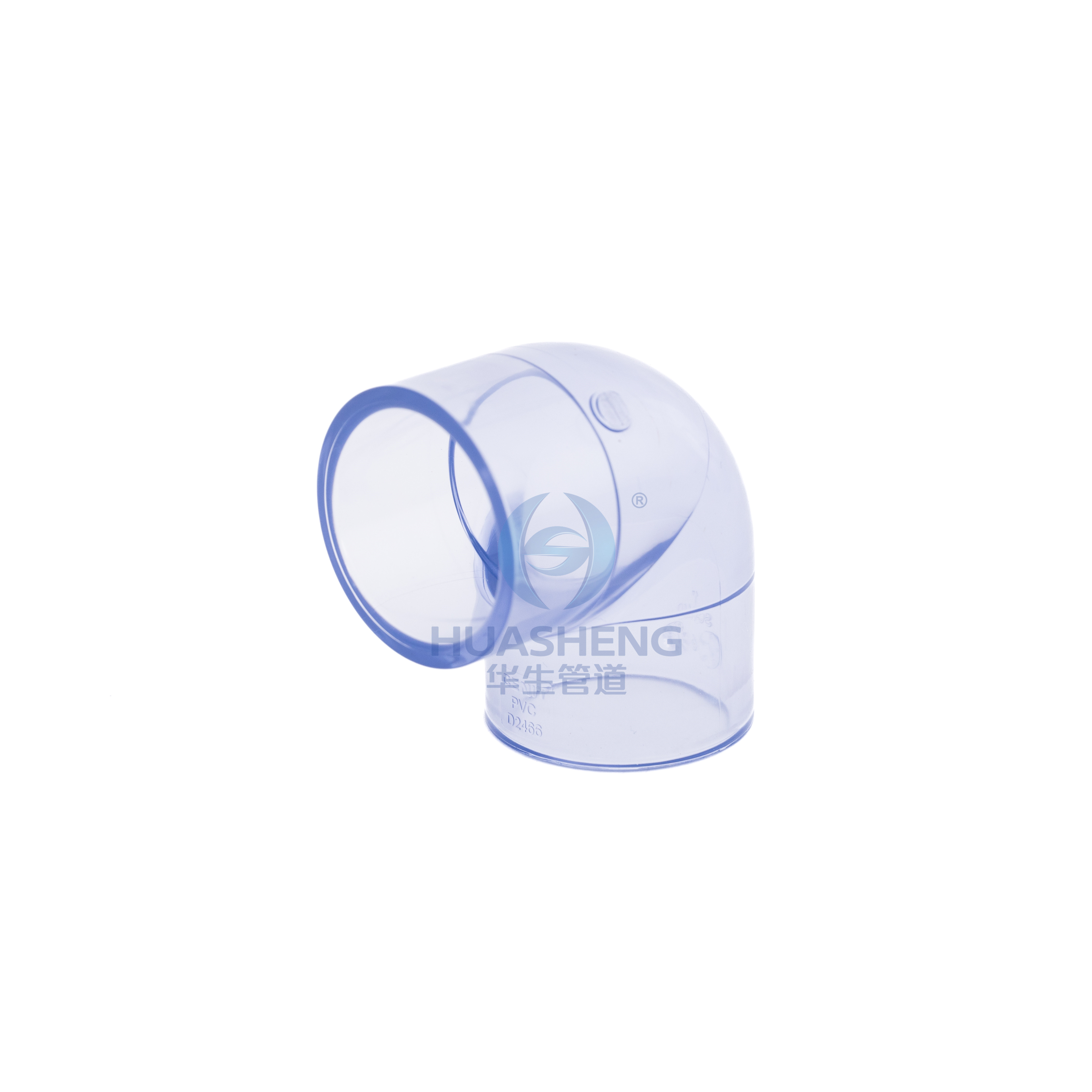

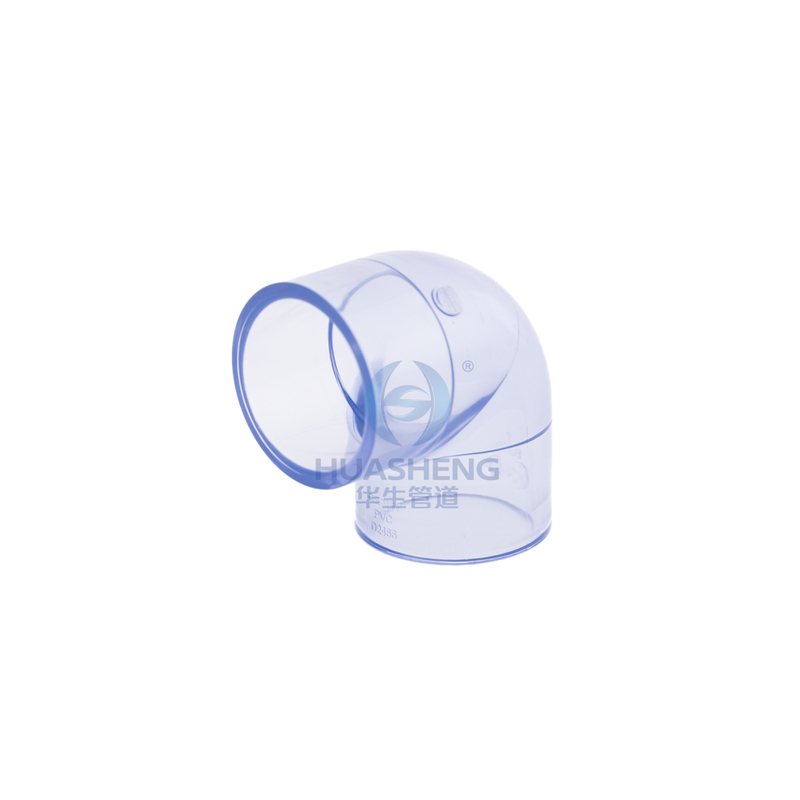

| Size （*"） | Dimension（mm） | ||||||
| D0 | d1 | d2 | d | T | L | H | |
| 1/2" | 27.12 | 21.54 | 21.24 | 19.24 | 17.60 | 30.30 | 43.86 |
| 3/4" | 33.10 | 26.87 | 26.58 | 24.57 | 18.70 | 34.00 | 50.55 |
| 1" | 40.90 | 33.66 | 33.28 | 31.27 | 22.70 | 41.50 | 61.95 |
| 1-1/4" | 50.10 | 42.42 | 42.05 | 40.04 | 24.30 | 47.30 | 72.35 |
| 1-1/2" | 56.50 | 48.56 | 48.12 | 46.11 | 28.30 | 54.80 | 83.05 |
| 2" | 69.00 | 60.63 | 60.18 | 58.17 | 29.90 | 61.90 | 96.40 |
| 2-1/2" | 84.20 | 73.38 | 72.86 | 69.85 | 45.00 | 84.00 | 126.10 |
| 3" | 100.80 | 89.31 | 88.72 | 85.70 | 48.10 | 94.60 | 145.00 |
| 4" | 127.30 | 114.76 | 114.09 | 110.07 | 51.30 | 111.00 | 174.65 |
| 6" | 183.63 | 168.83 | 168.02 | 164.00 | 77.20 | 166.20 | 258.02 |
| 8" | 236.84 | 219.84 | 218.71 | 213.69 | 102.60 | 217.60 | 336.02 |
| Size （*"） | Dimension（mm） | ||||||
| D0 | d1 | d2 | d | T | L | H | |
| 1/2" | 27.12 | 21.54 | 21.24 | 19.24 | 17.60 | 30.30 | 43.86 |
| 3/4" | 33.10 | 26.87 | 26.58 | 24.57 | 18.70 | 34.00 | 50.55 |
| 1" | 40.90 | 33.66 | 33.28 | 31.27 | 22.70 | 41.50 | 61.95 |
| 1-1/4" | 50.10 | 42.42 | 42.05 | 40.04 | 24.30 | 47.30 | 72.35 |
| 1-1/2" | 56.50 | 48.56 | 48.12 | 46.11 | 28.30 | 54.80 | 83.05 |
| 2" | 69.00 | 60.63 | 60.18 | 58.17 | 29.90 | 61.90 | 96.40 |
| 2-1/2" | 84.20 | 73.38 | 72.86 | 69.85 | 45.00 | 84.00 | 126.10 |
| 3" | 100.80 | 89.31 | 88.72 | 85.70 | 48.10 | 94.60 | 145.00 |
| 4" | 127.30 | 114.76 | 114.09 | 110.07 | 51.30 | 111.00 | 174.65 |
| 6" | 183.63 | 168.83 | 168.02 | 164.00 | 77.20 | 166.20 | 258.02 |
| 8" | 236.84 | 219.84 | 218.71 | 213.69 | 102.60 | 217.60 | 336.02 |
