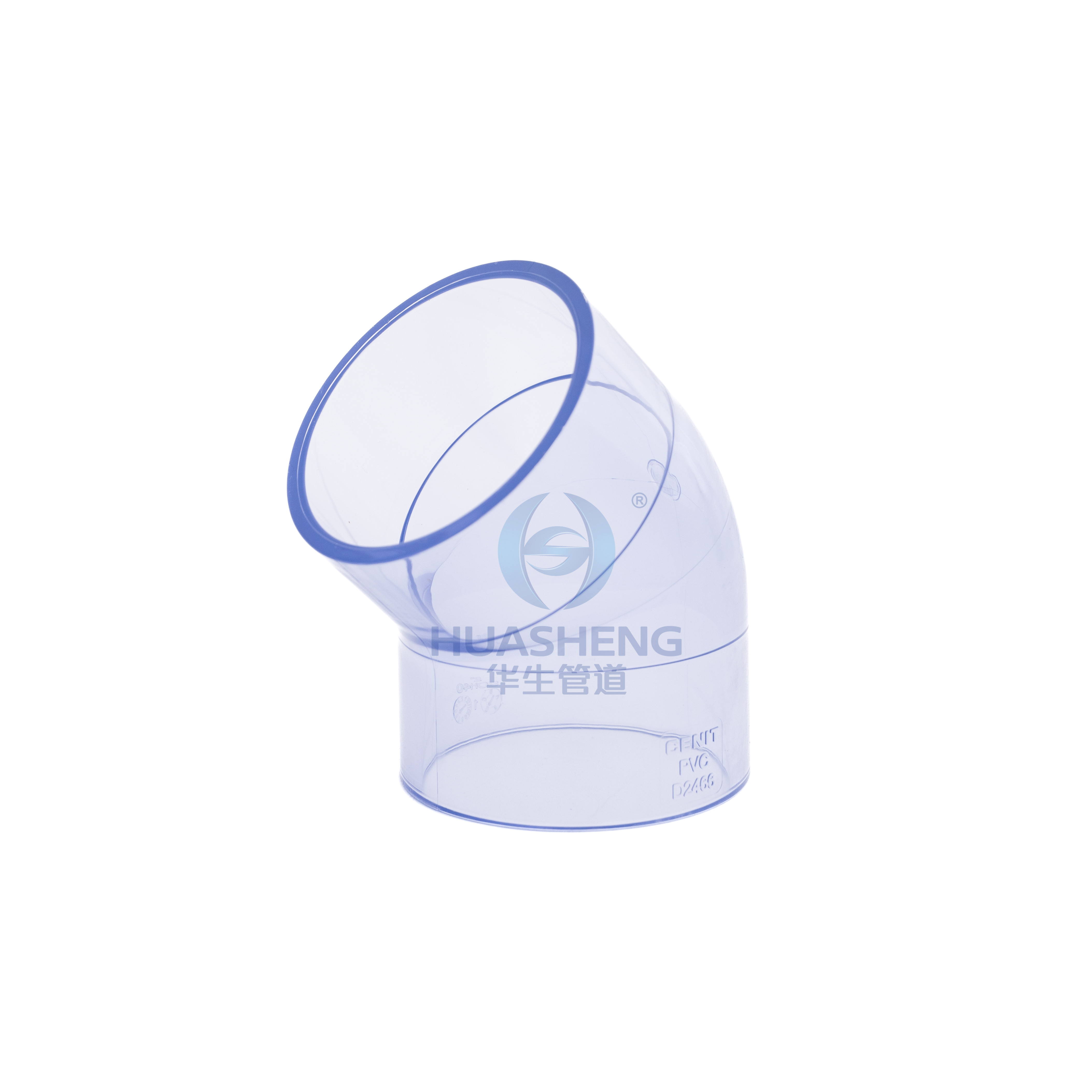

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Quantity:
Availability:





Inquire

Product Description

Size（*"）	Dimension（mm）
Size（*"）	D0	d1	d2	d	T	L
1/2"	27.12	21.54	21.24	19.24	17.60	24.00
3/4"	33.10	26.87	26.58	24.57	18.70	26.70
1"	40.90	33.66	33.28	31.27	22.70	31.20
1-1/4"	50.10	42.42	42.05	40.04	24.30	34.50
1-1/2"	56.50	48.56	48.12	46.11	28.30	39.90
2"	69.00	60.63	60.18	58.17	29.90	45.90
2-1/2"	84.20	73.38	72.86	69.85	45.00	63.00
3"	100.80	89.31	88.72	85.70	48.10	68.10
4"	127.30	114.76	114.09	110.07	51.30	76.80
6"	183.63	168.83	168.02	164.00	77.20	121.70
8"	236.84	219.84	218.71	213.69	102.60	153.60

Previous:

Next:

45 Degree Elbow sch40 45 Degree Elbow

Product Category

Related Products

Clear-PVC 45 Degree Elbow Fitting (SCH40)

Clear-PVC SCH40 ASTM D1785 pipe

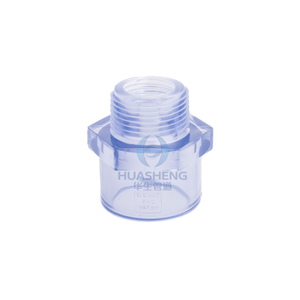

Clear-PVC Male Adaptor Fitting (SCH40)

Clear-PVC Male Adaptor Fitting (SCH40)

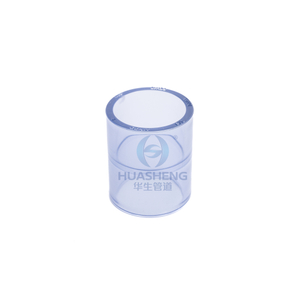

Clear-PVC Coupling Fitting (SCH40)

Clear-PVC Coupling Fitting (SCH40)

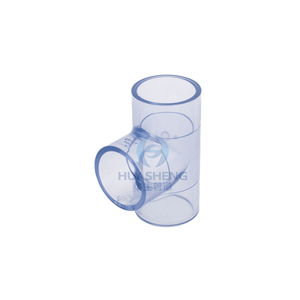

Clear-PVC Equal Tee Fitting (SCH40)

Clear-PVC Equal Tee Fitting (SCH40)

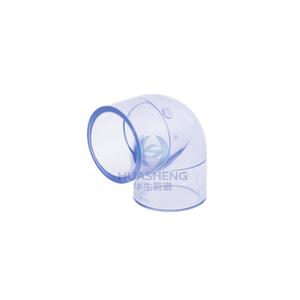

Clear-PVC 90 Degree Elbow Fitting (SCH40)
