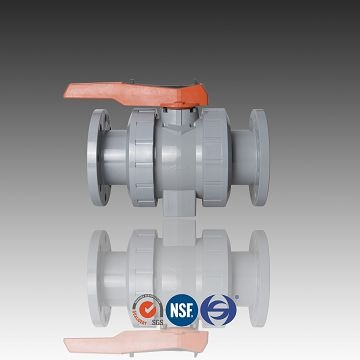

CPVC Flanged Ball Valve DIN ASTM Standard Manual 1.6Mpa For Water Supply

How to Make an Order? 1.Send an inquiry; 2.Discuss details; 3.We send samples if clients need (samples are free,but clients need to bear the freight); 4.Clients approve our samples; 5.Clients make 30% deposit or open LC after receiving our PI; 6.Pruduce and inspecting quality;

Quantity:
Availability:





Inquire

Product Description

Description of CPVC Flanged Ball Valve For Water Supply

Description：
Item Name	CPVC Flanged True Union Ball Valve
Materials	PVC-C
Specification	20~110 mm
Valve Color	Light Grey
connect	Socket
Pressure data	10bar~16bar
Power	Manual
Standarding	DIN, ANSI, JIS; NPT, BSPT, BS, CNS
Certificates	ISO14001,ISO9001,CE, NSF,SGS

Dimension of CPVC Flanged Ball Valve For Water Supply

（DIN)VALVE
Dimension（mm）											Working Pressure (kg/c㎡)
SizeDN （De）	D0	d0	d1	d2	d3	d	H1	H	T	L	Working Pressure (kg/c㎡)
15(20)	95.00	65.00	20.30	19.95	51.50	15.50	26.30	103.90	13.00	143.00	10
20(25)	105.00	75.00	25.30	24.95	59.00	20.50	30.60	114.66	14.00	172.00	10
25(32)	115.00	85.00	32.30	31.90	70.00	26.00	39.10	127.56	15.00	187.00	10
32(40)	140.00	100.00	40.35	39.90	85.40	33.00	44.20	157.51	15.00	190.00	10
40(50)	150.00	110.00	50.35	49.90	98.90	39.00	52.20	166.00	17.00	212.00	10
50(63)	165.00	125.00	63.40	62.90	122.20	51.00	71.30	197.50	17.00	234.00	10
65(75)	185.00	145.00	75.40	74.90	158.60	64.00	82.80	241.20	18.00	290.00	10
80(90)	200.00	160.00	90.50	89.90	192.10	81.00	99.30	261.20	18.00	310.00	10
100(110)	220.00	180.00	110.60	109.90	223.60	99.00	115.20	286.68	18.00	372.00	10

(ASTM)VALVE
Dimension（mm）											Working Pressure (kg/c㎡)
Size （"）	D0	d0	d1	d2	d3	d	H1	H	T	L	Working Pressure (kg/c㎡)
1/2"	95.00	70.00	22.40	19.95	51.50	15.50	26.30	103.90	13.00	143.00	10
3/4"	100.00	75.00	26.45	24.95	59.00	20.50	30.60	114.66	14.00	172.00	10
1"	125.00	90.00	32.55	31.90	70.00	26.00	39.10	127.56	15.00	187.00	10
1-1/4"	135.00	100.00	38.60	39.90	85.40	33.00	44.20	157.51	15.00	190.00	10
1-1/2"	140.00	105.00	48.70	49.90	98.90	39.00	52.20	166.00	17.00	212.00	10
2"	155.00	120.00	60.80	62.90	122.20	51.00	71.30	197.50	19.00	234.00	10
2-1/2"	175.00	140.00	76.80	74.90	158.60	64.00	82.80	241.20	20.00	290.00	10
3"	185.00	150.00	89.60	89.90	192.10	81.00	99.30	261.20	20.50	310.00	10
4"	210.00	175.00	114.70	109.90	223.60	99.00	115.20	286.68	21.00	372.00	10

(JIS)VALVE
Dimension（mm）											Working Pressure (kg/c㎡)
Size DN （De）	D0	d0	d1	d2	d3	d	H1	H	T	L	Working Pressure (kg/c㎡)
15(20)	95.00	70.00	22.40	19.95	51.50	15.00	26.30	103.90	15.00	145.00	10
20(25)	100.00	75.00	26.45	24.95	59.00	20.00	30.60	114.66	15.00	175.00	10
25(32)	125.00	90.00	32.55	31.90	70.00	25.00	39.10	127.56	15.00	190.00	10
32(40)	135.00	100.00	38.60	39.90	85.40	30.00	44.20	157.51	16.00	195.00	10
40(50)	140.00	105.00	48.70	49.90	98.90	40.00	52.20	166.00	17.00	220.00	10
50(63)	155.00	120.00	60.80	62.90	122.20	50.00	71.30	197.50	21.00	234.00	10
65(75)	175.00	140.00	76.80	74.90	158.60	63.00	82.80	241.20	23.00	300.00	10
80(90)	185.00	150.00	89.60	89.90	192.10	80.00	99.30	261.20	23.50	320.00	10
100(110)	210.00	175.00	114.70	109.90	223.60	100.00	115.20	286.68	23.50	387.00	10

MATERIAL TABLE

MATERIAL TABLE
No.	Parts	Quantity	Material
01	Lever	1	PVC-U/PP+GF30%
02	Shaft	1	PVC-U/PVC-C
03	Nut	2	PVC-U/PVC-C
04	One piece flange	2	PVC-U/PVC-C
05	Body	1	PVC-U/PVC-C
06	Ball	1	PVC-U/PVC-C
07	Ball seat	2	PTFE/TPE+PP
08	O-ring1	2	EPDM/FPM
09	Seal-Carrier	1	PVC-U/PVC-C
10	O-ring2	2	EPDM/FPM
11	O-ring3	1	EPDM/FPM
12	Fixed snap ring	2	PVC-U/PVC-C
13	O-ring4	2	EPDM/FPM

Packing Details of CPVC Flanged Ball Valve DIN ASTM Standard Manual 1.6Mpa For Water Supply

No	Description	Size	Pcs/ctn	Weight (g/pcs)	Length (cm)	Width (cm)	Height (cm)
1	Flanged true union ball valve	DN15	24	281.66	43	34	36
2		DN20	18	407.09	38	37	39
3		DN25	18	577.83	42.5	42	38.5
4		DN32	8	880.79	44.5	33	34.5
5		DN40	12	1328.90	46.5	39.5	57.5
6		DN50	8	1901.51	50	37	42
7		DN65	2	3915.19	42.5	42	38.5
8		DN80	2	5354.33	42.5	42	38.5
9		DN100	1	8093.70	47	33	40

How to Make an Order?

1.Send an inquiry;

2.Discuss details;

3.We send samples if clients need (samples are free,but clients need to bear the freight);

4.Clients approve our samples;

5.Clients make 30% deposit or open LC after receiving our PI;

6.Pruduce and inspecting quality;

7.Final random inspection;

8.Shipment;

9.Clients make balance after receiving our copy of B/L;

10.We send documents to client;

11. Follow up after-sales service.

Feature of CPVC Flanged Ball Valve DIN ASTM Standard Manual 1.6Mpa For Water Supply:

Black PVC with light weathering property

Compact and Lightweight Design

Rated at Full 150 PSI/1.0MPA

Easy 1/4-Turn Operation

EPDM/FPM Seals

Easy to assemble with wrench

Competitive price
