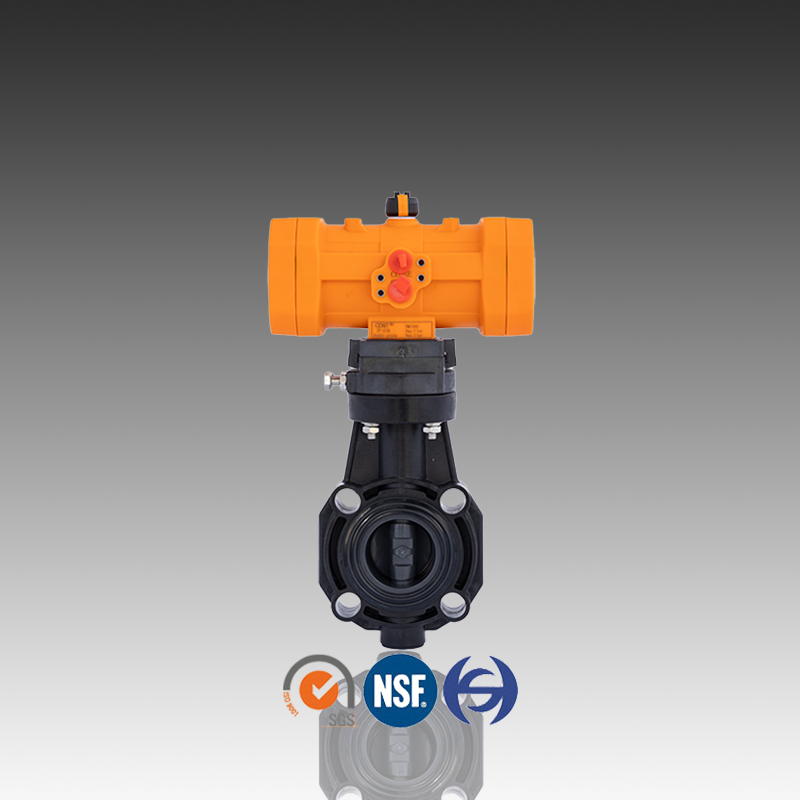

| Valve name | PVC Pneumatic Butterfly Valve |
| Valve materials | PVC/PP+GF/EPDM/PP+GF |
| Valve size | De63-De300mm |
| Valve color | according to customer requirements; valve body is dark grey and handle is red handle |
| To connect | two flanges at each side |
| Valve pressure | 1.0mpa/pn10 |
| Application | General |
| Valve standard | ANSI/DIN/JIS/ASTM/CNS/ISO 4422 |
| Valve certificate | NSF,ISO14001,ISO9001, SGS, CE |
| (DIN/ASTM/JIS)VALVE | ||||||||
| Dimension（mm） | Working Pressure (kg/C㎡) | |||||||
| Size DN（De） | D | H | H1 | H2 | H3 | S | L1 | |
| 50(63) | 104.00 | 327.48 | 77.00 | 250.48 | 15.00 | 44.50 | 90.00 | 10 |
| 65(75) | 114.30 | 352.13 | 83.00 | 269.13 | 15.00 | 46.00 | 90.00 | 10 |
| 80(90) | 130.00 | 384.13 | 89.00 | 295.13 | 15.00 | 48.60 | 90.00 | 10 |
| 100(110) | 160.40 | 432.77 | 104.00 | 328.77 | 55.50 | 90.00 | 10 | |
| 125(140) | 186.00 | 481.47 | 117.00 | 364.47 | 63.00 | 90.00 | 10 | |
| 150(160) | 215.00 | 528.30 | 130.00 | 388.30 | 72.00 | 90.00 | 10 | |
| 200(225) | 269.00 | 593.54 | 158.00 | 435.54 | 73.00 | 90.00 | 6 | |
| 250(280) | 324.00 | 750.51 | 205.00 | 545.51 | 113.00 | 125.00 | 6 | |
| 300(315) | 336.60 | 888.24 | 228.00 | 660.24 | 114.40 | 125.00 | 6 | |
| MATERIAL TABLE | |||
| No. | Parts | Quantity | Material |
| 01 | Pneumatic actuator | 1 | aluminium alloy |
| 02 | Collar | 1 | Stainless Steel 304/316 |
| 03 | Located Set | 1 | PP+GF30% |
| 04 | Gasket | 1 | PP+GF30% |
| 05 | Bolt | 4 | Stainless Steel 304/316 |
| 06 | Body | 1 | PP+GF30% |
| 07 | Guide Sleeve | 2 | PVC-U/PVC-C |
| 08 | O-ring | 8 | EPDM/FPM |
| 09 | Valve sleeve | 1 | PVC-U/PVC-C |
| 10 | Disc | 1 | PVC-U/PVC-C |
| 11 | Seal Ring | 1 | EPDM/FPM |
| 12 | Shaft | 1 | Stainless Steel 304/316 |
| 13 | Rubber ring | 2 | EPDM/FPM |
| 14 | Collar | 1 | Stainless Steel 304/316 |
| 15 | Washer | 1 | Stainless Steel 304/316 |
| 16 | Washer cover | 1 | PP+GF30% |
| 17 | Washer | 1 | Stainless Steel 304/316 |
| Packing Details | |||||||
| No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 1 | Pneumatic butterfly valve | DN50 | 2 | 1778.70 | 39 | 30 | 28.5 |
| 2 | DN65 | 2 | 1877.70 | 39 | 30 | 28.5 | |
| 3 | DN80 | 2 | 2064.70 | 47.5 | 47.5 | 25.5 | |
| 4 | DN100 | 2 | 3630.00 | 49 | 40 | 26.5 | |
| 5 | DN125 | 2 | 4157.34 | 49 | 40 | 26.5 | |
| 6 | DN150 | 2 | 7260.00 | 49 | 40 | 26.5 | |
| 7 | DN200 | 1 | 10305.90 | 54 | 28 | 33 | |
| 8 | DN250 | 1 | 16273.95 | 69 | 35.5 | 37 | |
| 9 | DN300 | 1 | 19353.95 | 74 | 40 | 30 | |
Wafer Body Design
Fits ANSI /DIN/JIS or PN10 Flange Patterns
PVC with PVC/CPVC Disc
316/304 Grade Stainless Steel
EPDM/FPM Booted Liner
Standard Lockout Handlever
Q: Can I have my brand name and logo print on the valves and packing?
A: It's OK, But Moq should be 800 PCS, and we could engrave the logo on the caps and packing.
Q: I want it in ANSI standard for America Market, can you make this?
A: No problem, we have different types for different market.
Q: Can you prouce the my product by my samples or drawing?
A: Yes, we can, We can make molds to produce the product by your samples or drawings.
Q: We need best price for India market, could you use the recycle material?
A: I'm sorry, we have to use the virgin material to keep the quality are ok. And our price is also competitive in India market.
Q: I'm a small shop keeper, I want to buy small quantity, do you have in stock?
A: Yeah, We always have the DIN and ANSI standard product in stock, so we accept the small order.
show room
Administrators have overseas education background or working experiences, they introduce up-to-date management skills and cutting-edge technologies to the team
Over 200 injection machines, 80 mechanical processing equipment, including machinery imported from Taiwan, Japan and Germany
Huasheng established in 1988 who had over 20 years of experience in plastic extrusion and injection
24-hour Rigorous QC Team that follows ISO 9001 quality management system
A rounded system of up-to-date software and testing equipment for R&D
