| Quantity: | |
|---|---|

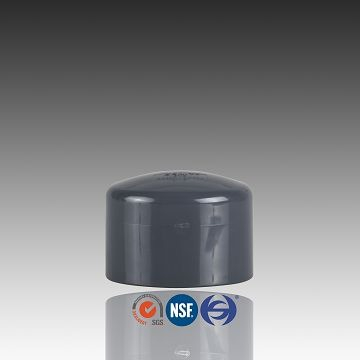

SCH80 PVC End Cap
1.Items goods : PVC Cap
2.Material: PVC,stabilizer
3.Size:1/2 inch to 12 inch
4.Color: Gray or customize
5.Connect:Socket
6.Standard:ASTM D 1785 SCH80
7.Certificate:NSF,ISO,SGS

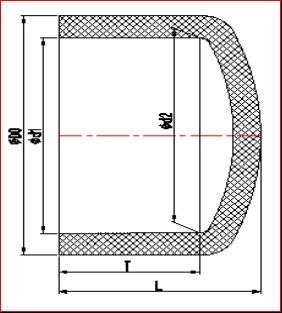

| SCH80 PVC Cap，PVC\CPVC，data specification and drawing | |||||
| size （*“） | diameter （mm） | ||||
| D0 | d1 | d2 | T | L | |
| 1/2“ | 29.54 | 21.54 | 21.23 | 23.22 | 30.80 |
| 3/4“ | 35.31 | 26.87 | 26.57 | 26.40 | 35.13 |
| 1“ | 43.70 | 33.66 | 33.27 | 29.57 | 40.00 |
| 1-1/4“ | 53.05 | 42.42 | 42.04 | 32.75 | 45.00 |
| 1-1/2“ | 59.86 | 48.56 | 48.11 | 35.93 | 49.00 |
| 2“ | 72.23 | 60.63 | 60.17 | 39.10 | 53.95 |
| 2-1/2“ | 87.98 | 73.38 | 72.85 | 45.45 | 64.20 |
| 3“ | 105.30 | 89.31 | 88.70 | 48.63 | 58.00 |
| 4“ | 132.00 | 114.76 | 114.07 | 58.15 | 81.00 |
| 5“ | 161.80 | 141.81 | 141.04 | 67.68 | 106.50 |
| 6“ | 190.85 | 168.83 | 168.00 | 77.20 | 119.55 |
| 8“ | 245.85 | 219.84 | 218.69 | 102.60 | 141.70 |
| 10“ | 305.80 | 273.81 | 272.67 | 128.00 | 186.25 |
| 12“ | 361.60 | 324.60 | 323.47 | 153.40 | 228.00 |
| Packing List | |||||
| Size | Weight (g/pcs) | Pcs/ctn | Length (cm) | Width (cm) | Height (cm) |
| 1/2〞 | 14.70 | 900 | 43.50 | 31.00 | 30.00 |
| 3/4〞 | 22.05 | 630 | 43.50 | 31.00 | 30.00 |
| 1〞 | 37.28 | 486 | 36.00 | 36.00 | 21.00 |
| 1-1/4〞 | 56.70 | 216 | 32.00 | 32.00 | 28.00 |
| 1-1/2〞 | 75.08 | 150 | 32.00 | 32.00 | 28.00 |
| 2〞 | 105.53 | 180 | 45.00 | 38.00 | 31.00 |
| 2-1/2〞 | 193.73 | 60 | 48.50 | 36.00 | 32.00 |
| 3〞 | 290.85 | 64 | 49.00 | 45.00 | 28.50 |
| 4〞 | 483.00 | 27 | 41.00 | 41.00 | 24.00 |
| 5〞 | 852.25 | 18 | 51.5 | 50 | 20.5 |
| 6〞 | 1239.00 | 12 | 41.5 | 41.5 | 35.5 |
| 8〞 | 2496.38 | 8 | 52 | 52 | 31.5 |
| 10〞 | 4651.50 | 2 | 33 | 33 | 37 |
| 12〞 | 7615.13 | 2 | 38 | 38 | 43 |
1) Material: High Density PVC
2) Technology: Injection
3) Color: White, White Blue,or as request
4) Application: Pipe Connection
5)Size: 16mm, 20mm, 25mm, 32mm, 40mm,50mm
6) Standard: BS4262/ IEC61084-2-1
7) Certification: ISO9001, CE
8) Business Type: Manufacturer or OEM
9) Logo: Customized
1) High strength and toughness, are suitable for all kinds of bad conditions, and not easy distorted
2) With no smell attracting rodent, avoid suffering from biotic attack
3) No poison no second pollution
4) Free from weakness caused by rusting, weathering and chemical actions
5) Good insulation property, fire- resistant and combustion-resistance
6) Protects wire and cable from easily damage
7) PVC connector are used as surface mounting, control box, junction box, switch box or general service box and pipe
show room
Administrators have overseas education background or working experiences, they introduce up-to-date management skills and cutting-edge technologies to the team
Over 200 injection machines, 80 mechanical processing equipment, including machinery imported from Taiwan, Japan and Germany
Huasheng established in 1988 who had over 20 years of experience in plastic extrusion and injection
24-hour Rigorous QC Team that follows ISO 9001 quality management system
A rounded system of up-to-date software and testing equipment for R&D
Equipped with a professional factory, Huasheng Plastic is one of the best manufacturers in China who can offer you sch80 pvc using on the end cap for pipe. We can also offer you the pricelist consultation of sch80 pvc using on the end cap for pipe, welcome to buy our customized products.
