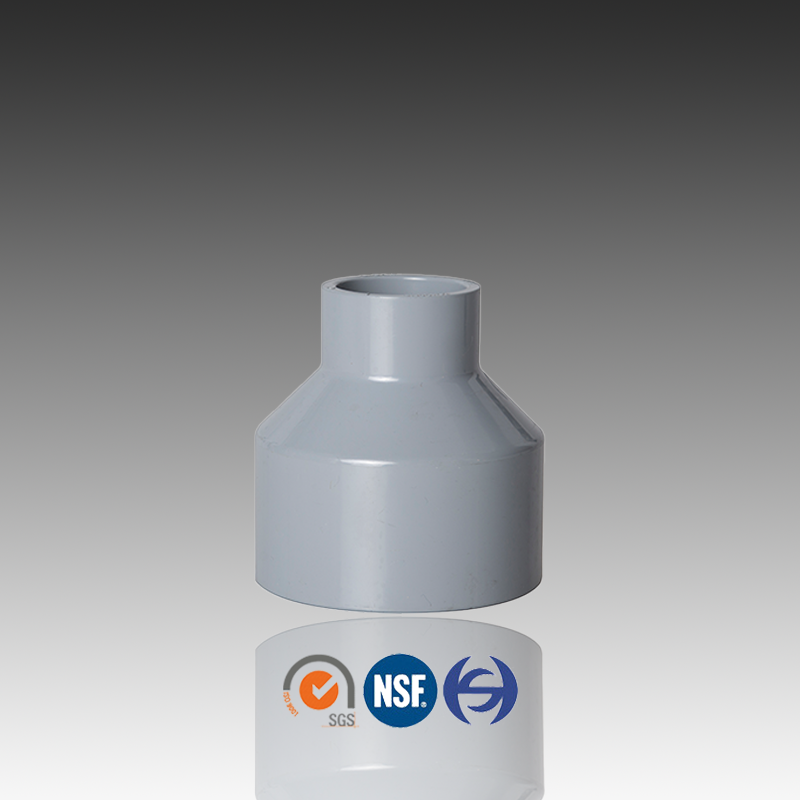

CPVC Reducer Coupling Pipe Fittings

CPVC CPVC Reducer 1.Items Name:CPVC Reducer 2.Material:CPVC 3.Size:20mm to 400mm 4.Color: Gray or customize 5.Connect:Socket 6.Standard: DIN standard 7.Certificate:CE,ISO,SGS

Quantity:
Availability:





Inquire

Product Description

CPVC Reducer Coupling Pipe Fittings Description：

CPVC CPVC Reducer

1.Items Name:CPVC Reducer

2.Material:CPVC

3.Size:20mm to 400mm

4.Color: Gray or customize

5.Connect:Socket

6.Standard: DIN standard

7.Certificate:CE,ISO,SGS

Product Drawing

CPVC Reducer Coupling Pipe Fittings 1

CPVC Reducer Coupling Pipe Fittings Size

Reducer coupling ，PVC-C （DIN PN10） drawing
DN（De）	Diameter（mm）
DN（De）	D0	D1	D2	d0	d1	d2	d3	t	T	L
20X15 (25*20)	31.80	25.30	24.95	26.30	20.30	19.95	18.00	16.20	18.70	40.00
25X15 (32*20)	39.90	32.30	31.90	26.30	20.30	19.95	18.00	16.20	22.20	48.50
25X20 (32*25)	39.90	32.30	31.90	31.80	25.30	24.95	23.00	18.70	22.20	47.40
32X15 (40*20)	49.40	40.35	39.90	26.30	20.30	19.95	18.00	16.20	26.20	56.50
32X20 (40*25)	49.30	40.35	39.90	31.80	25.30	24.95	23.00	18.70	26.20	56.80
32X25 (40*32)	49.40	40.35	39.90	39.70	32.30	31.90	30.00	22.20	26.20	54.80
40X15 (50*20)	61.50	50.35	49.90	26.30	20.30	19.95	18.00	16.20	31.20	66.00
40X20 (50*25)	61.50	50.35	49.90	31.80	25.30	24.95	23.00	18.70	31.20	66.00
40X25 (50*32)	61.50	50.35	49.90	39.90	32.30	31.90	30.00	22.20	31.20	67.00
40X32 (50*40)	61.90	50.35	49.90	49.70	40.35	39.90	38.00	26.20	31.20	65.00
50X15 (63*20)	77.20	63.40	62.90	26.30	20.30	19.95	18.00	16.20	37.70	79.00
50X20 (63*25)	77.30	63.40	62.90	31.80	25.30	24.95	23.00	18.70	37.70	79.00
50X25 (63*32)	77.90	63.40	62.90	39.90	32.30	31.90	30.00	22.20	37.70	80.00
50X32 (63*40)	77.30	63.40	62.90	49.70	40.35	39.90	38.00	26.20	37.70	80.00
50X40 (63*50)	77.30	63.40	62.90	61.90	50.35	49.90	48.00	31.20	37.70	77.70
65X15 (75*20)	90.80	75.40	74.90	26.30	20.30	19.95	18.00	16.20	43.70	93.00
65X20 (75*25)	90.80	75.40	74.90	31.80	25.30	24.95	23.00	18.70	43.70	92.70
65X25 (75*32)	90.80	75.40	74.90	39.90	32.30	31.90	30.00	22.20	43.70	93.50
65X32 (75*40)	90.80	75.40	74.90	49.40	40.35	39.90	38.00	26.20	43.70	93.00
65X40 (75*50)	91.00	75.40	74.90	61.70	50.35	49.90	48.00	31.20	43.70	93.30
65X50 (75*63)	91.00	75.40	74.90	77.50	63.40	62.90	61.00	37.70	43.70	92.50
80X20 (90*25)	107.30	90.50	89.90	32.00	25.30	24.95	23.00	18.70	51.20	108.00
80X25 (90*32)	107.20	90.50	89.90	40.40	32.30	31.90	30.00	22.20	51.20	108.10
80X32 (90*40)	107.20	90.50	89.90	49.70	40.35	39.90	38.00	26.20	51.20	108.50
80X40 (90*50)	107.30	90.50	89.90	61.60	50.35	49.90	48.00	31.20	51.20	108.20
80X50 (90*63)	107.30	90.50	89.90	77.30	63.40	62.90	61.00	37.70	51.20	108.00
80X65 (90*75)	107.30	90.50	89.90	91.20	75.40	74.90	70.90	43.70	51.20	107.30
100X20 (110*25)	127.00	110.60	109.90	32.00	25.30	24.95	23.00	18.70	61.20	127.80
100X25 (110*32)	127.00	110.60	109.90	40.10	32.30	31.90	30.00	22.20	61.20	128.30
100X32 (110*40)	126.80	110.60	109.90	49.70	40.35	39.90	38.00	26.20	61.20	128.60
100X40 (110*50)	127.00	110.60	109.90	61.70	50.35	49.90	48.00	31.20	61.20	128.00
100X50 (110*63)	127.40	110.60	109.90	77.50	63.40	62.90	61.00	37.70	61.20	128.00
100X65 (110*75)	127.00	110.60	109.90	90.80	75.40	74.90	70.90	43.70	61.20	128.60
100X80 (110*90)	127.00	110.60	109.90	107.30	90.50	89.90	85.90	51.20	61.20	127.40
De125*110	144.00	125.70	124.90	127.00	110.60	109.90	103.90	61.20	68.70	142.60
125X40 (140*50)	161.60	140.75	139.90	61.60	50.30	49.90	48.00	61.20	76.20	157.60
125X50 (140*63)	161.60	140.75	139.90	77.60	63.40	62.90	61.00	68.70	76.20	158.00
125X65 (140*75)	161.60	140.75	139.90	91.00	75.35	74.90	70.90	31.20	76.20	158.50
125X80 (140*90)	161.70	140.75	139.90	77.50	90.50	89.90	85.90	37.70	76.20	158.30
125X100 (140*110)	161.80	140.75	139.90	127.20	110.60	109.90	103.90	43.70	76.20	157.70
De140*125	161.80	140.75	139.90	144.60	125.65	124.90	118.90	51.20	76.20	157.50
150X50 (160*63)	184.60	160.70	159.90	127.00	63.35	62.90	61.00	61.20	87.00	180.50
150X65 (160*75)	184.60	160.70	159.90	91.20	75.35	74.90	70.90	76.20	87.00	179.00
150X80 (160*90)	184.60	160.70	159.90	107.70	90.50	89.90	85.90	37.70	87.00	178.70
150X100 (160*110)	184.70	160.70	159.90	127.50	110.60	109.90	103.90	43.70	87.00	180.20
150X125 (160*140)	184.60	160.70	159.90	161.90	140.75	139.90	133.90	51.20	87.00	177.30
De180*160	202.60	180.80	179.90	180.00	160.70	159.90	153.90	87.00	97.00	202.20
De200*160	230.00	201.00	199.90	184.40	160.80	159.90	153.90	86.20	106.20	217.50
200X150 (225*160)	259.40	226.20	224.90	184.40	160.80	159.90	153.90	86.20	118.70	242.50
De225*200	259.40	226.20	224.90	230.50	201.00	199.90	193.50	106.20	118.70	243.00
De250*225	287.90	251.30	249.90	259.00	226.20	224.90	216.90	118.70	131.20	269.50
250X200 (280*225)	314.80	281.30	279.90	259.40	226.20	224.90	216.90	118.70	147.00	304.50
300X250 (315*280)	354.60	316.60	314.90	314.80	281.30	279.90	278.00	147.00	163.70	338.00
350X300 (355*315)	391.00	356.80	355.00	354.60	316.60	314.90	306.90	163.70	184.00	384.00
400X300 (400*315)	442.00	402.00	400.00	344.00	316.60	314.90	306.90	163.70	207.00	435.00
400X350 (400*355)	442.00	402.00	400.00	384.25	356.80	355.00	326.00	184.00	207.00	430.70

CPVC Reducer Coupling Pipe Fittings Packing List

Packing list
Size	Pcs/ctn	Weight (g/pcs)	Length (cm)	Width (cm)	Height (cm)
DN20*15	600	17.22	43.5	31	30
DN25*15	380	27.72	43.5	31	30
DN25*20	380	29.19	43.5	31	30
DN32*15	416	47.46	43.5	31	30
DN32*20	416	46.83	43.5	31	30
DN32*25	416	50.61	43.5	31	30
DN40*15	204	82.95	43.5	31	30
DN40*20	204	84	43.5	31	30
DN40*25	204	86.73	43.5	31	30
DN40*32	204	90.09	43.5	31	30
DN50*15	100	157.29	43.5	31	30
DN50*20	100	155.82	43.5	31	30
DN50*25	100	157.29	43.5	31	30
DN50*32	100	161.07	43.5	31	30
DN50*40	100	169.26	43.5	31	30
DN65*15	95	232.47	48.5	36	32
DN65*20	95	233.73	48.5	36	32
DN65*25	95	236.25	48.5	36	32
DN65*32	95	241.5	48.5	36	32
DN65*40	95	252	48.5	36	32
DN65*50	95	270.9	48.5	36	32
DN80*20	60	416	53	38	31.5
DN80*25	60	348.6	53	38	31.5
DN80*32	60	354.9	53	38	31.5
DN80*40	60	363.3	53	38	31.5
DN80*50	60	384.3	53	38	31.5
DN80*65	36	399	44.5	33	34.5
DN100*20	44	565.5	53	38	35.5
DN100*25	44	565.5	53	38	35.5
DN100*32	44	485.1	53	38	35.5
DN100*40	44	501.9	53	38	35.5
DN100*50	44	529.2	53	38	35.5
DN100*65	44	543.9	53	38	35.5
DN100*80	44	579.6	53	38	35.5
DN125*40	18	1215.5	53	38	35.5
DN125*50	18	1222	53	38	35.5
DN125*65	18	1043	53	38	35.5
DN125*80	18	1096.2	53	38	35.5
DN125*100	18	1039.5	53	38	35.5
DN150*50	10	1474.2	53	38	31.5
DN150*65	10	1499.4	53	38	31.5
DN150*80	10	1547.7	53	38	31.5
DN150*100	10	1535.1	53	38	31.5
DN150*125	8	1640.1	41	38	39
De200*160	8	2954.7	49	49	38
DN200*150	8	3952.2	55	55	42
De225*200	4	4940	55	55	27
De250*225	2	6820.8	32	32	56
DN250*200	2	6825	65	33.5	34
De280*250	2	8047	65	33.5	34
DN300*250	2	11563.5	38	38	69
De355*200	2	10296	40.5	40.5	62.5
De355*250	2	10647	40.5	40.5	62.5
DN350*300	2	11518	40.5	40.5	62.5
De400*200	1	13585	45	45	46
DN400*300	1	14040	45	45	46
DN400*350	1	15041	45	45	46

show room

Show Room

Huasheng Advantage

Management:

Administrators have overseas education background or working experiences, they introduce up-to-date management skills and cutting-edge technologies to the team

Machinery:

Over 200 injection machines, 80 mechanical processing equipment, including machinery imported from Taiwan, Japan and Germany

Experience:

Huasheng established in 1988 who had over 20 years of experience in plastic extrusion and injection

Quality Assurance:

24-hour Rigorous QC Team that follows ISO 9001 quality management system

Laboratory:

A rounded system of up-to-date software and testing equipment for R&D

huasheng factory

Equipped with a professional factory, Huasheng Plastic is one of the best manufacturers in China who can offer you cpvc reducer coupling pipe fittings. We can also offer you the pricelist consultation of cpvc reducer coupling pipe fittings, welcome to buy our customized products.
