| Quantity: | |
|---|---|
| Description： | |

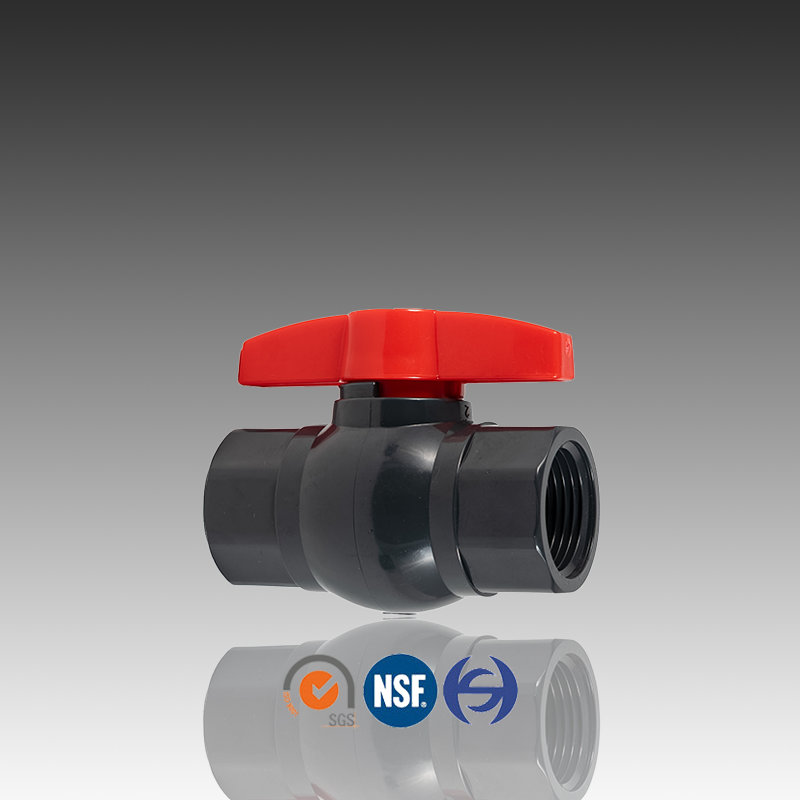

| Name of product | PVC Threaded Ball Valve |
| Materials | PP/UPVC/TPE+PP |
| Dimension | 1"~4" |
| Valve Color | Dark Grey/Light Grey /Blue/White |
| connect | female thread, BSPT |
| Pressure data | 10kg/16kg |
| Usage area | for water supply, drainage or aquaculture |
| Standards | DIN, BS, ANSI, CNS; NPT, BSPT, JIS |
| Name of Certification | ISO9001,SGS,CE, NSF, ISO14001 |
| Temperature Range | -20℃~60℃ |
| Delivery | 3~20 days after receiving the deposit, depends on the quantity |
| (DIN)VALVE | |||||||||
| Dimension（mm） | |||||||||
| Size（De*"） | D0 | D1 | D2 | d | T | H | L1 | L | Tr |
| 20*1/2" | 31.60 | 18.35 | 18.76 | 15.00 | 17.00 | 60.00 | 70.00 | 74.00 | 1/2" |
| 25*3/4" | 37.70 | 23.90 | 24.10 | 20.00 | 19.50 | 68.00 | 80.00 | 85.00 | 3/4" |
| 32*1" | 45.50 | 30.70 | 31.00 | 25.00 | 23.00 | 80.00 | 92.00 | 98.00 | 1" |
| 40*1-1/4" | 54.80 | 39.10 | 39.60 | 30.00 | 27.00 | 90.00 | 112.00 | 112.50 | 1-1/4" |
| 50*1-1/2" | 62.00 | 44.50 | 45.00 | 34.00 | 32.00 | 105.00 | 114.00 | 128.00 | 1-1/2" |
| 63*2" | 74.80 | 56.10 | 56.60 | 45.00 | 36.00 | 123.00 | 134.00 | 149.00 | 2" |
| 75*2-1/2" | 92.20 | 71.96 | 72.20 | 55.00 | 40.00 | 156.00 | 190.00 | 168.00 | 2-1/2" |
| 90*3" | 106.70 | 54.40 | 85.10 | 67.00 | 48.00 | 178.00 | 220.00 | 195.00 | 3" |
| 110*4" | 135.20 | 109.50 | 110.00 | 93.00 | 54.00 | 208.50 | 250.00 | 244.00 | 4" |
| Packing Details | |||||||
| No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 1 | Threaded ball valve | De20 | 200 | 98.98 | 34.5 | 32 | 32.5 |
| 2 | De25 | 160 | 128.09 | 36.5 | 31.5 | 37 | |
| 3 | De32 | 90 | 205.59 | 42.5 | 29 | 32 | |
| 4 | De40 | 60 | 334.60 | 39 | 29 | 36 | |
| 5 | De50 | 40 | 444.56 | 45 | 32 | 27.5 | |
| 6 | De63 | 20 | 692.77 | 38.5 | 29 | 32 | |
| 7 | De75 | 15 | 1140.22 | 50.5 | 44.5 | 25.5 | |
| 8 | De90 | 10 | 1863.48 | 54 | 40.5 | 29.5 | |
| 9 | De110 | 6 | 3073.11 | 51 | 37 | 35 | |
| Test before delivery | |||||||||
| Test item | Technical index | Test result | Single item result | ||||||
| Outside look | Valve body: the surface shoul d be smooth, no crack, no desquamate, no bur, no obvious cold spot, no obvious color difference or change | Valve body: the surface should be smooth, no crack, no desquamate, no bur, no obvious cold spot, no obvious color difference or change | Qualified | ||||||
| Oven test | No bubble, no crack in joint line | No bubble, no crack in joint line | Qualified | ||||||
| Drop test | Free fall from 1m high, no crack | Free fall from 1m high, no crack | Qualified | ||||||
Flattening test | By the 50mm/min+5mm/min speed, flatten the valve socket by 10% shape change, no crack | By the 50mm/min+5mm/min speed, flatten the valve socket by 10% shape change, no crack | Qualified | ||||||
| Seal test | 1.The valve is off, under 1.6MPa pressure, keep this condition for 5minutes, no leakage from two sockets and o-ring of handle 2. The valve is on, under 1.6MPa pressure, keep this condition for 5 minutes, no leakage from o-ring of handle | 1.The valve is off, under 1.6MPa pressure, keep this condition for 5minutes, no leakage from two sockets and o-ring of handle 2. The valve is on, under 1.6MPa pressure, keep this condition for 5 minutes, no leakage from o-ring of handle | Qualified | ||||||
| Final result | Qualified | ||||||||
1. We have each valve part and can manufacture them, so our price and quality are good, the lead time is short;
2. We have the ability to make mould, can provide OEM survice according to customer's requirements;
3. Many international well-known company have long-term cooperation relation with us;
4. We can guarantee the quality, because we have each valve tested before delivery;
5. We are the expert in piping manufacture and can provide the most professional and efficent service;
6. Make the change and improvement according the customer's requirement, provide eveyone the impressive service.
show room
Administrators have overseas education background or working experiences, they introduce up-to-date management skills and cutting-edge technologies to the team
Over 200 injection machines, 80 mechanical processing equipment, including machinery imported from Taiwan, Japan and Germany
Huasheng established in 1988 who had over 20 years of experience in plastic extrusion and injection
24-hour Rigorous QC Team that follows ISO 9001 quality management system
A rounded system of up-to-date software and testing equipment for R&D
Equipped with a professional factory, Huasheng Plastic is one of the best manufacturers in China who can offer you pvc threaded ball valve din standard bspt thread. We can also offer you the pricelist consultation of pvc threaded ball valve din standard bspt thread, welcome to buy our customized products.
