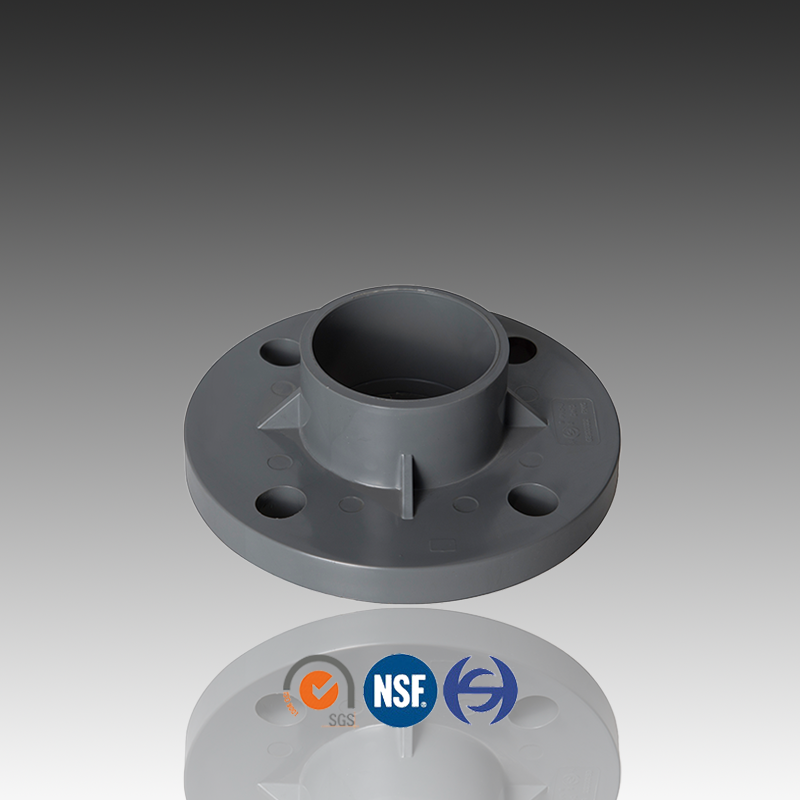

UPVC Flange
UPVC
20mm to 400mm
Grey or customize
Socket
DIN standard
CE,ISO,SGS
1. 100% factory pre-tested;
2. Well and high quality control;
3. Environment friendly, non-toxic, good looking and long service life;
4. Light weight, easy to handle and transport;
5. Soft colors and excellent design, suitable for installation either exposed or hidden;
6. Wonderful ability in chemical corrosion resistance;
7. Easy and fast installation, making cost minimized;
8. Widely used in building, irrigation, industry and swimming pool;
9. Small order is acceptable;
10.Customer's design and logo are welcome.
| One Piece Flange PN16 | |||||||||||
Size DN （De） | Dimension（mm） | ||||||||||
| D0 | D1 | d0 | d1 | d2 | d3 | da | T | H | L | n | |
| 15(20) | 95.00 | 65.00 | 26.80 | 20.30 | 19.95 | 16.00 | 14.00 | 16.20 | 12.40 | 20.20 | 4 |
| 20(25) | 105.00 | 75.00 | 32.50 | 25.30 | 24.95 | 21.00 | 14.00 | 18.70 | 13.50 | 22.70 | 4 |
| 25(32) | 115.00 | 85.00 | 40.30 | 32.30 | 31.90 | 28.00 | 14.00 | 22.20 | 15.00 | 26.20 | 4 |
| 32(40) | 140.00 | 100.00 | 49.30 | 40.35 | 39.90 | 36.00 | 18.00 | 26.20 | 14.40 | 31.20 | 4 |
| 40(50) | 150.00 | 110.00 | 61.60 | 50.35 | 49.90 | 46.00 | 18.00 | 31.20 | 15.50 | 36.20 | 4 |
| 50(63) | 165.00 | 125.00 | 77.40 | 63.40 | 62.90 | 57.00 | 18.00 | 37.70 | 15.50 | 43.70 | 4 |
| 65(75) | 185.00 | 145.00 | 90.40 | 75.40 | 74.90 | 69.00 | 18.00 | 43.70 | 17.30 | 50.20 | 4 |
| 80(90) | 200.00 | 160.00 | 106.50 | 90.50 | 89.90 | 83.00 | 18.00 | 51.20 | 18.50 | 58.70 | 8 |
| 100(110) | 220.00 | 180.00 | 126.90 | 110.60 | 109.90 | 103.00 | 18.00 | 61.20 | 20.30 | 68.70 | 8 |
| De125 | 250.00 | 210.00 | 144.00 | 125.70 | 124.90 | 117.00 | 18.00 | 68.70 | 22.00 | 77.20 | 8 |
| 125(140) | 250.00 | 210.00 | 161.30 | 140.75 | 139.90 | 131.50 | 18.00 | 76.20 | 22.20 | 84.70 | 8 |
| 150(160) | 285.00 | 240.00 | 184.30 | 160.80 | 159.90 | 151.00 | 22.00 | 86.20 | 25.00 | 95.70 | 8 |
| De180 | 285.00 | 240.00 | 202.60 | 180.80 | 179.90 | 166.00 | 22.00 | 97.00 | 25.50 | 115.00 | 8 |
| De200 | 340.00 | 295.00 | 227.00 | 201.00 | 199.90 | 190.00 | 22.00 | 106.20 | 26.30 | 116.20 | 8 |
| 200(225) | 340.00 | 295.00 | 254.10 | 226.20 | 224.90 | 216.00 | 22.00 | 118.70 | 27.00 | 129.70 | 8 |
| De250 | 395.00 | 350.00 | 281.30 | 251.30 | 249.90 | 239.50 | 22.00 | 131.20 | 28.00 | 142.20 | 12 |
| 250(280) | 405.00 | 350.00 | 310.40 | 281.50 | 279.90 | 264.00 | 22.00 | 147.00 | 29.00 | 169.00 | 12 |
| 300(315) | 445.00 | 400.00 | 354.60 | 316.70 | 314.90 | 302.00 | 22.00 | 167.70 | 31.50 | 179.70 | 12 |
| 350(355) | 510.00 | 450.00 | 391.00 | 356.80 | 355.00 | 326.00 | 24.00 | 184.00 | 40.00 | 197.00 | 16 |
| 400(400) | 570.00 | 500.00 | 442.00 | 401.80 | 400.30 | 386.30 | 27.00 | 207.00 | 42.50 | 226.00 | 16 |
| Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| One-piece flange | DN15 | 168 | 124.30 | 57 | 42 | 43 |
| DN20 | 143 | 165.00 | 43.5 | 31 | 30 | |
| DN25 | 88 | 213.40 | 43.5 | 31 | 30 | |
| DN32 | 54 | 299.20 | 43.5 | 31 | 30 | |
| DN40 | 48 | 409.20 | 43.5 | 31 | 30 | |
| DN50 | 42 | 528.00 | 43.5 | 31 | 30 | |
| DN65 | 18 | 678.70 | 57 | 42 | 43 | |
| DN80 | 15 | 776.60 | 43.5 | 31 | 30 | |
| DN100 | 8 | 1006.50 | 57 | 42 | 43 | |
| De125 | 12 | 1512.50 | 47 | 47 | 26 | |
| DN125 | 10 | 1556.50 | 44 | 44 | 31 | |
| DN150 | 6 | 2244.00 | 48.5 | 36 | 32 | |
| De180 | 6 | 2409.00 | 53 | 38 | 31.5 | |
| De200 | 6 | 3531.00 | 65 | 35.5 | 35 | |
| DN200 | 4 | 3569.50 | 35.5 | 35.5 | 53 | |
| De250 | 3 | 5040.75 | 41.5 | 41.5 | 43 | |
| DN250 | 3 | 5076.50 | 41 | 41 | 52.5 | |
| DN300 | 2 | 8019.00 | 45 | 45 | 39 |
