| Quantity: | |
|---|---|

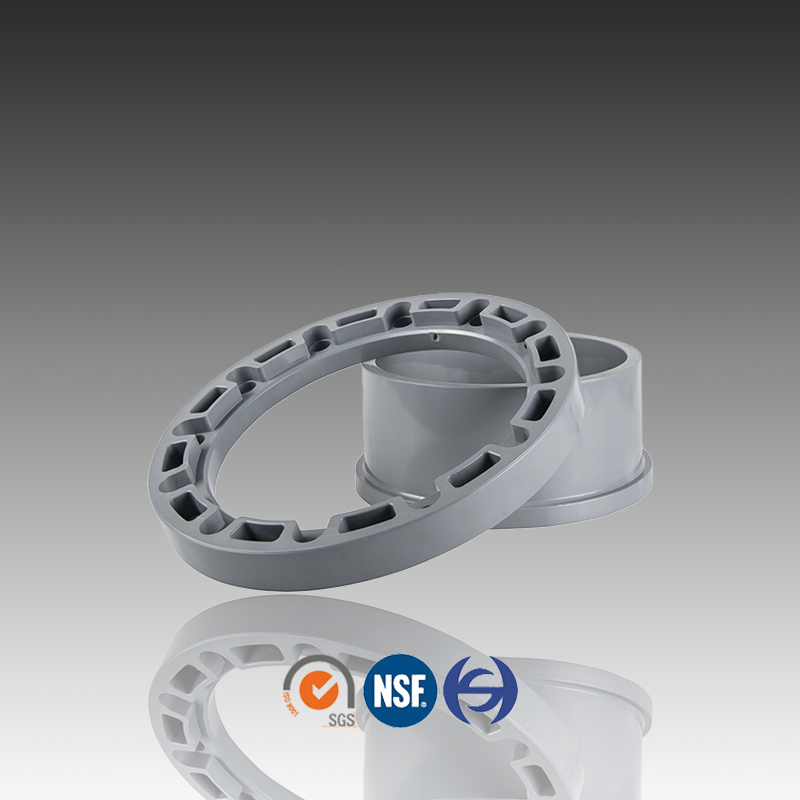

SCH 80 CPVC Vanstone Flange
1.Items Name:SCH 80 CPVC Vanstone Flange
2.Material:CPVC
3.Size:10 inch to 12 inch
4.Color: Gray or customize
5.Connect:Flange
6.Standard:ASTM D 1785 SCH80
7.Certificate:NSF,ISO,SGS
| SCH 80 PVC Vanstone Flange ，PVC/C，SCH 80 ASTM F439 CPVC fittings drawing | |||||||
| dn （*"） | size（mm） | ||||||
| D0 | D1 | D2 | d0 | d1 | d2 | d3 | |
| 10" | 410.00 | 362.00 | 309.80 | 305.80 | 273.81 | 272.67 | 262.50 |
| 12" | 482.60 | 432.00 | 366.60 | 362.60 | 324.60 | 323.47 | 313.00 |
| dn （*"） | size（mm） | ||||||
| dW | da | T | H1 | H | L | n | |
| 10" | 327.37 | 24 | 128.00 | 3.00 | 42.00 | 138.00 | 12 |
| 12" | 384.60 | 24 | 153.40 | 3.00 | 44.00 | 166.00 | 12 |
| Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 10" | 3 | 7,020 | 44 | 44 | 44 |
| 12" | 2 | 11,778 | 50 | 50 | 36 |
show room
Administrators have overseas education background or working experiences, they introduce up-to-date management skills and cutting-edge technologies to the team
Over 200 injection machines, 80 mechanical processing equipment, including machinery imported from Taiwan, Japan and Germany
Huasheng established in 1988 who had over 20 years of experience in plastic extrusion and injection
24-hour Rigorous QC Team that follows ISO 9001 quality management system
A rounded system of up-to-date software and testing equipment for R&D
Equipped with a professional factory, Huasheng Pipeline is one of the best manufacturers in China who can offer you sch 80 cpvc vanstone loose flange. We can also offer you the price list consultation of sch 80 cpvc vanstone loose flange, welcome to buy our customized products.
