Bar, MPa, PSI To PN10/PN16: The Complete Pressure Rating Guide for Pipe Fittings

When selecting pipe fittings and valves, pressure may be specified in different units depending on the market or piping standard — Bar, MPa, PSI, and kg/cm² all show up on drawings and datasheets, while plastic pipe fittings are commonly marked with pressure classes such as PN10 and PN16.

Knowing how these values relate to each other helps engineers, distributors, and buyers compare specifications accurately and choose the right fitting for the application — not just the one with the biggest number on it.

Bar, MPa, PSI and kg/cm² Conversion Table

Core conversion formulas:

• MPa = Bar × 0.1

• Bar = MPa × 10

• PSI ≈ Bar × 14.5

• Bar ≈ PSI × 0.06895

• Bar ≈ kg/cm² × 0.9807 (close enough to a 1:1 field estimate)

For example: 16 bar = 1.6 MPa ≈ 232 PSI ≈ 16.3 kg/cm² — a conversion worth memorizing, since it also happens to describe a PN16 rating.

What Do PN10 and PN16 Mean?

Unlike Bar, MPa and PSI, which are units of pressure, PN is a nominal pressure classification used for pipes, fittings and valves under DIN/ISO-based standards.

A useful shortcut: the PN number is the bar value. PN10 ≈ 10 bar, PN16 ≈ 16 bar. But it is not the MPa value — PN16 means 1.6 MPa, not 16 MPa (16 MPa would be around 160 bar, a very different pressure class entirely).

PN isn't the only rating system you'll encounter. SCH (Schedule) ratings under ASTM/ASME describe wall thickness rather than pressure directly, and SDR (Standard Dimension Ratio) is used for PE/HDPE piping under ISO 4427. None of the three are directly interchangeable — a spec that mixes "PN16" and "SCH80" on the same bill of quantities needs both converted to a common bar/MPa figure before comparing.

PN10 vs PN16: Which One Should You Choose?

PN16 is not automatically the better choice. The right class depends on:

• Maximum working pressure of the system

• Operating temperature

• Pipe and fitting material

• Fluid being transported

• Pressure fluctuations, water hammer or surges

• The applicable piping standard for the project

Does PN16 Mean the Fitting Can Always Handle 16 Bar?

No — and this is the point most buyers miss. A PN16 designation applies at a specified reference temperature, usually 20°C. As operating temperature rises, the allowable working pressure of thermoplastic materials generally falls, so a PN16 fitting running hot water is not actually holding 16 bar of margin in that condition.

• PVC loses pressure capacity noticeably above roughly 25–30°C and is generally not recommended for continuous service past 60°C.

• CPVC tolerates continuous service up to around 80–95°C (depending on grade) while keeping a comparable pressure class at moderate temperatures — which is why it's the usual upgrade path from PVC on hot lines.

• PE/HDPE is rated by SDR rather than PN, with its own temperature- and time-dependent pressure curve.

Always check the manufacturer's pressure-vs-temperature chart for the specific material before finalizing a selection based on a printed PN number alone.

Choosing the Right Fitting by Pressure Class & Material

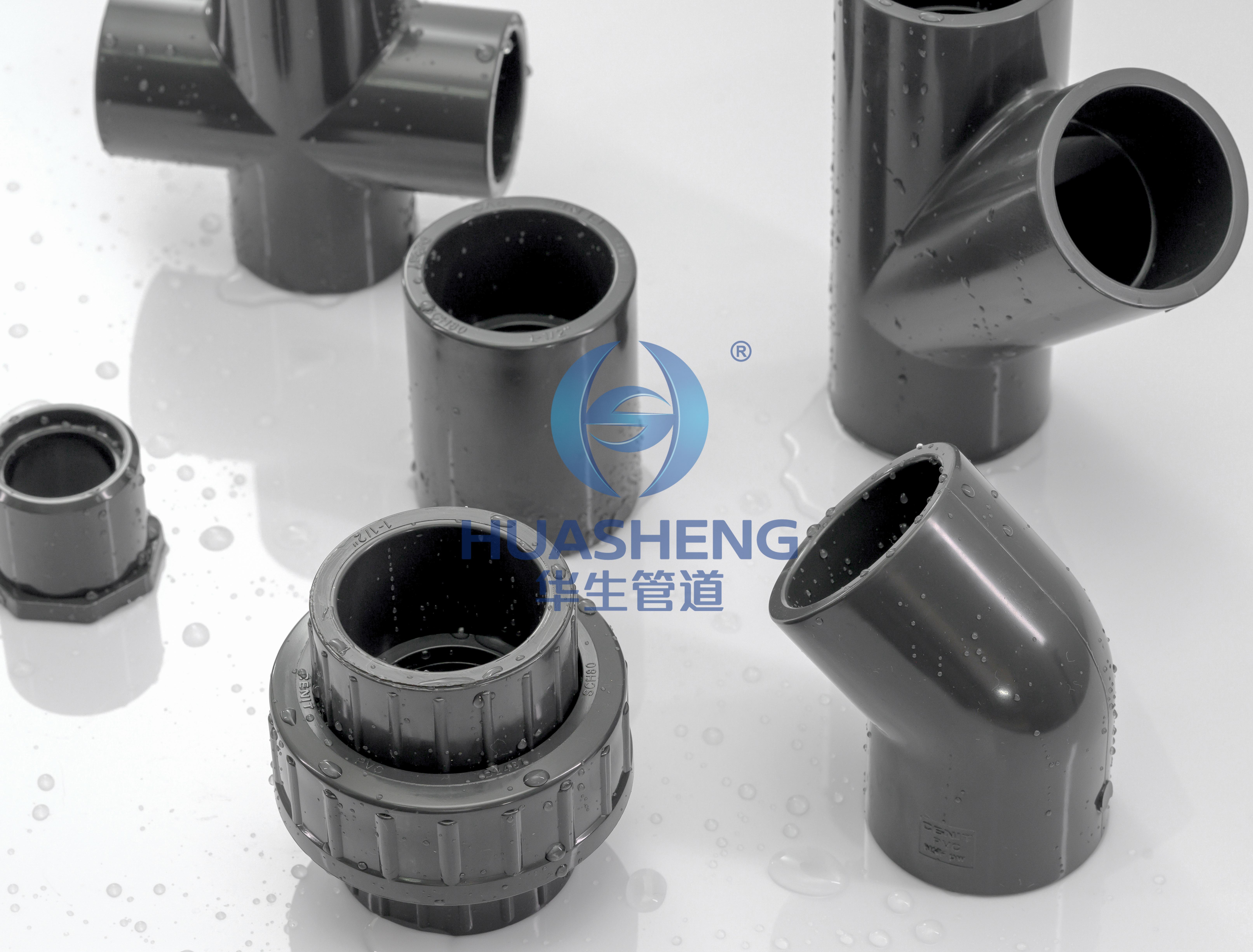

• PN10 / PN16 PVC & CPVC — cold-water supply, irrigation, general distribution near ambient temperature. → PVC Fitting PN10 | PVC Fitting PN16 | CPVC Fitting PN16

• SCH40 / SCH80 PVC & CPVC — higher pressure or higher temperature, chemical processing, ASTM-standard projects. → PVC Fitting SCH40 | PVC Fitting SCH80 | CPVC Fitting SCH80

• PE Fittings (SDR, ISO 4427) — buried water mains, gas lines, fusion-welded systems. → PE Fitting | PE Socket Fusion Fitting

• PPH, PVDF & PFA Fittings — high-purity or aggressive-chemical process lines beyond PVC/CPVC's limits. → PPH Fitting | PVDF Fitting | PFA Fitting

Common Pressure Rating Mistakes

• Confusing bar and MPa. 16 bar ≠ 16 MPa — they're a factor of 10 apart.

• Assuming PN16 always means 16 bar of real-world margin. The rating is a reference-condition classification, not a guarantee under every temperature and fluid.

• Ignoring water hammer. A sudden pump stop or valve closure can spike pressure well above steady-state operating pressure, even on a system that looks safely within its PN rating on paper.

• Mixing PN, SCH and SDR numbers directly. Convert everything to bar/MPa before comparing across a project specification.

How to Choose the Right Pressure Rating

1. Determine the working pressure — identify normal and maximum system pressure.

2. Check the operating temperature — both normal and peak.

3. Select the material — PVC, CPVC, PPH, PE/HDPE, PVDF or PFA, based on the application.

4. Confirm the applicable standard — PN, SCH, SDR, DIN, ASTM or JIS.

5. Account for pressure surges — water hammer, pump start/stop conditions.

6. Verify against the manufacturer's datasheet — never finalize a selection on a rounded conversion alone.

FAQ

How many bar is 1 MPa? 1 MPa = 10 bar.

How many PSI is 16 bar? 16 bar ≈ 232 PSI.

Is PN10 the same as 10 bar? Approximately — PN10 ≈ 10 bar ≈ 1.0 MPa ≈ 145 PSI at the standard's reference temperature.

Does PN16 mean 16 MPa? No. PN16 corresponds to 16 bar, which equals 1.6 MPa — not 16 MPa. 16 MPa would be roughly 160 bar, a much higher pressure class.

Can a PN16 PVC fitting be used at 40°C? The 16-bar rating applies at 20°C. At 40°C, PVC's allowable pressure is reduced, so check the manufacturer's de-rating chart — CPVC is usually the better choice once temperatures climb past PVC's practical range.

Conclusion

Converting between Bar, MPa, PSI and kg/cm² is simple multiplication. Choosing the right pressure-rated fitting takes one more step: matching that number to the right material, standard, and operating temperature — not just the highest PN you can find.

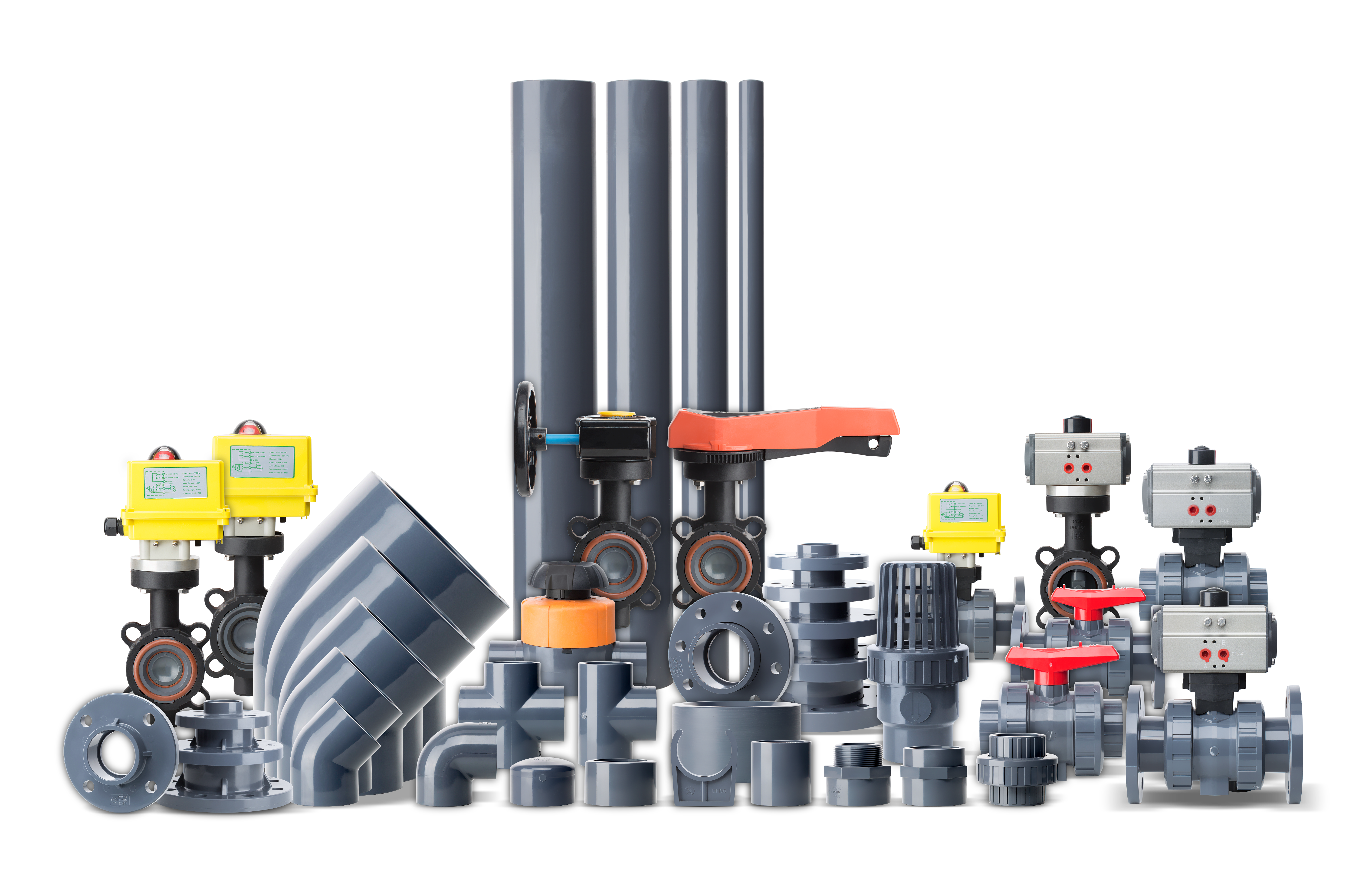

Need help matching a pressure rating to your project? Contact our team — we manufacture PVC, CPVC, PE, PPH, PVDF and PFA pipes, fittings and valves across PN10/PN16 (DIN), SCH40/SCH80 (ASTM) and JIS standards.
