How To Use A PVC Ball Valve

A PVC ball valve is one of the simplest and most widely used valves in plumbing, irrigation and industrial systems. Using it correctly prevents leaks, protects your pipes and extends the valve’s life. This guide explains how to operate, install, maintain and troubleshoot a PVC ball valve.

How to Use a PVC Ball Valve: The Quick Answer

1. Look at the handle. Parallel to the pipe means open. Perpendicular to the pipe means closed.

2. Turn a quarter turn (90°). That is all it takes to switch between open and closed.

3. Move slowly and steadily. Never force the handle, and never use a hammer or pipe wrench.

How Does a PVC Ball Valve Work?

A PVC ball valve is a shut-off valve made from polyvinyl chloride. It is lightweight, corrosion-resistant, low-cost and easy to install, which makes it a standard choice for cold water lines, irrigation, pools, water treatment and chemical dosing (when the fluid is compatible with PVC).

Inside the valve are five main parts:

• Body: The outer shell that connects to the pipe.

• Ball: A sphere with a hole (the bore) through its center.

• Seats: Sealing rings on each side of the ball, often made of PTFE or similar materials.

• Stem: The shaft that links the handle to the ball, usually sealed with an O-ring.

• Handle: The lever you turn.

When you rotate the handle 90°, the stem turns the ball. With the bore lined up with the pipe, water flows through. With the bore turned sideways, the solid wall of the ball blocks the flow. Few moving parts means quick operation and a tight shutoff.

How to Tell If a PVC Ball Valve Is Open or Closed

The handle’s direction mirrors the bore’s position inside the valve. A simple memory aid: parallel means pass, perpendicular means plugged.

If the handle sits at about 45°, the valve is partly open. Ball valves are designed to be fully open or fully closed, and leaving one partly open for long periods can wear the seats. If you need to regulate flow, a butterfly or diaphragm valve is usually a better option.

Some ball valves have T-shaped or lockable handles. The rule stays the same: check the handle’s alignment with the pipe.

How to Install a PVC Ball Valve

Solvent Weld (Socket) Connection

1. Cut the pipe square and remove burrs.

2. Dry-fit the pipe into the valve socket to check the depth.

3. Apply PVC primer to the pipe end and inside the socket.

4. Apply PVC cement while the primer is still wet.

5. Push the pipe fully into the socket with a slight quarter turn, then hold for about 30 seconds.

6. Let the joint cure before turning on the water. Follow the cement manufacturer’s cure time.

Threaded Connection

1. Wrap PTFE tape 3 to 4 times clockwise around the male thread.

2. Screw the valve on by hand, then tighten one to two more turns with a wrench.

3. Stop when the joint feels firm. Over-tightening can crack PVC.

Installation Tips

Support the pipe near the valve so the valve doesn’t carry the weight. Leave enough room for the handle to turn a full 90°. Open the valve slowly the first time and check the joints for leaks.

How to Operate and Maintain a PVC Ball Valve

Operating Step by Step

1. Confirm the valve is in good condition and the handle moves freely.

2. To open, rotate the handle until it is parallel with the pipe.

3. To close, rotate it until it is perpendicular to the pipe.

4. Move gently, especially on high-flow lines, to avoid water hammer, the pressure surge that can damage pipes and fittings.

If the handle is stiff, apply steady pressure close to the stem rather than sudden force.

Maintenance Tips

• Use only silicone lubricant. Petroleum-based products such as WD-40 can attack PVC and make it brittle. For drinking water, use a lubricant approved for potable water.

• Cycle the valve regularly. A valve left in one position for months can stiffen as scale builds up. Open and close it a few times a year.

• Protect it from sun and impact. For outdoor use, limit long exposure to direct sunlight and avoid knocks.

PVC Ball Valve Troubleshooting

Simple test: Turn the handle through its full 90° range, close the valve completely, and check whether any water still passes.

Common mistakes to avoid:

• Over-tightening threaded connections

• Using a pipe wrench or hammer on the valve

• Skipping primer, or pressurizing before the cement has cured

• Using compressed air or gas in PVC systems, which is not safe

• Working on a valve while the line is still under pressure

• Using a standard PVC valve with hot water

PVC vs PCV: These are often confused. PVC is the plastic used in pipes and valves. A PCV valve is a car engine emissions part and has nothing to do with plumbing.

How to Choose the Right PVC Ball Valve

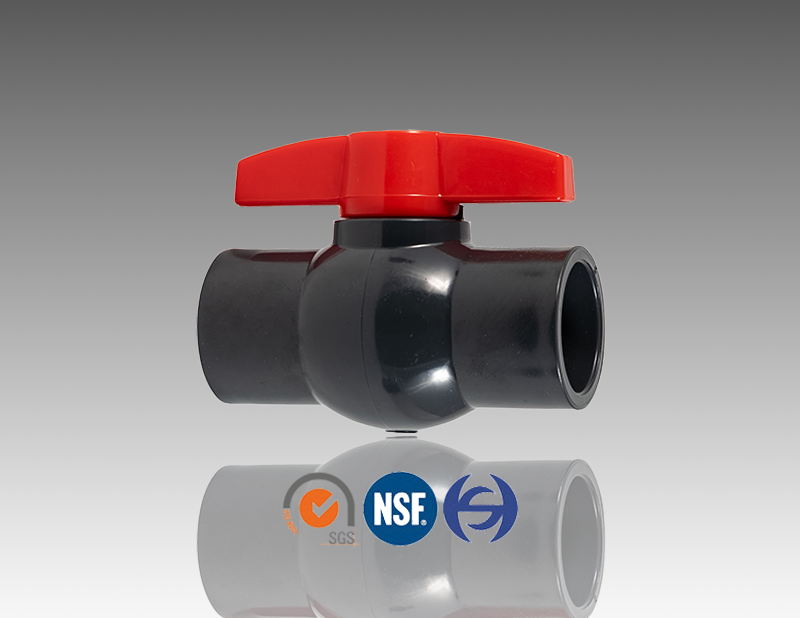

Valve type. Compact ball valves are economical for general use. True union ball valves can be unscrewed from the pipe ends, so they can be removed or repaired without cutting the pipe. Flanged ball valves suit larger diameters and industrial lines.

Connection type. Socket ends give a permanent solvent-weld bond. Threaded ends suit systems you may need to take apart.

Pressure rating. Choose a rating comfortably above your working pressure, such as PN10, PN16 or SCH80.

Temperature. Standard PVC suits cold water, generally up to about 60°C (140°F). For hot water, choose CPVC.

Seal material. EPDM, FKM and PTFE suit different fluids. Check compatibility with your medium.

Standard and size. Match the connection standard (DIN, ASTM or JIS) and size to your pipe.

Manual or actuated. Manual handles suit most uses. Electric or pneumatic actuators suit automated systems.

Browse our range of PVC ball valves.

Frequently Asked Questions

How do you know if a PVC ball valve is open or closed?
Check the handle. Parallel to the pipe is open; perpendicular is closed.

Which way do you turn a PVC ball valve to close it?
Turn the handle a quarter turn until it sits across the pipe. The turning direction depends on installation, but the final position tells you the state.

Can a PVC ball valve be used partly open?
It is not recommended. Ball valves are designed for full open or full closed use.

Can PVC ball valves be used with hot water?
Standard PVC is not suitable for hot water. Use CPVC valves instead.

Can you use PVC ball valves with compressed air?
No. Plastic piping systems should not be used with pressurized gas.

Why is my PVC ball valve hard to turn?
Common causes are dry seats, mineral build-up or a long period without use. Steady pressure and silicone lubricant usually help. If it stays stiff, replace it.

Can you repair a leaking PVC ball valve?
Minor stem leaks may be fixed if the valve is serviceable. Leaks through the ball or seats generally mean the valve needs replacing.

Conclusion

Using a PVC ball valve is simple: parallel means open, perpendicular means closed, and a slow quarter turn does the job. Choose the right rating, install it carefully, avoid force and maintain it with silicone lubricant, and the valve will serve reliably for years.
