PVDF (Polyvinylidene Fluoride): Properties, Applications, And Manufacturing

Polyvinylidene fluoride (PVDF) is a high-performance fluoropolymer valued for chemical resistance, mechanical strength, thermal stability, and high purity. It is widely used where ordinary plastics fall short: chemical processing, semiconductor manufacturing, pharmaceutical systems, and water treatment. This guide explains what PVDF is, its key properties, how it is made, where it is used, and how to choose PVDF pipes, fittings, and valves.

What Is PVDF?

PVDF stands for polyvinylidene fluoride, also written polyvinylidene difluoride. It is a semi-crystalline thermoplastic fluoropolymer made by polymerizing vinylidene fluoride (VDF), with the formula (CH₂–CF₂)n. Unlike PTFE, PVDF can be extruded and injection molded with conventional thermoplastic methods, so it can be made into pipes, fittings, valves, and complex components. It offers a strong balance of chemical resistance, mechanical strength, and processability.

PVDF vs PVF: Clearing Up the Confusion

Many buyers search for "polyvinyl fluoride (PVDF)", but the two names describe different materials. PVDF is polyvinylidene fluoride. Polyvinyl fluoride (PVF) is a separate polymer made from vinyl fluoride and is used mainly in thin protective films. If you need pipes, fittings, valves, or sheet for chemical service, you are almost certainly looking for PVDF.

Key Properties of PVDF

Chemical Resistance

PVDF resists most mineral acids, halogens, oxidizing agents, hydrocarbons, alcohols, and halogenated solvents. Its known limits are hot concentrated sulfuric acid and hot amines, and it dissolves in polar aprotic solvents such as NMP, DMF, and DMSO. Always check a compatibility chart for your exact medium, concentration, and temperature.

Thermal Performance

PVDF is typically rated for continuous service from -20 °C up to 140 °C, which is higher than PVC, CPVC, and polypropylene. It should never be exposed to fire or overheated far beyond its processing range, because decomposition releases toxic fluorine-containing fumes.

Mechanical Strength and Wear Resistance

PVDF is rigid and abrasion-resistant, with good resistance to stress fatigue and cold flow. It is self-extinguishing, with a limiting oxygen index (LOI) of about 44%.

High Purity and UV Resistance

Low extractables and a smooth surface make PVDF a standard choice for ultrapure fluids. Its carbon–fluorine backbone also resists UV radiation and weathering, so it performs well outdoors.

Values vary by grade and manufacturer, so confirm them against the datasheet of the product you plan to buy.

Types and Grades of PVDF

PVDF homopolymer offers the highest crystallinity, strength, and chemical resistance, and is the standard choice for piping and chemical equipment. Copolymers, usually with HFP or CTFE, are more flexible and suit wire, cable, and tubing. Grades also differ by melt viscosity, molecular weight, and purity, from standard industrial grades to high-purity grades for semiconductor use.

How Is PVDF Manufactured?

PVDF is made by free-radical polymerization of VDF monomer, in suspension or emulsion, and supplied as powder or pellets. Resin is then converted by:

• Extrusion: produces pipes, tubes, rods, sheets, and films. Equipment must avoid dead spots where molten resin can stagnate and degrade.

• Injection molding: produces fittings, valve bodies, and housings. Melt temperatures of roughly 200–270 °C are typical, and mold design must allow for shrinkage of about 3–4%.

• Compression molding, powder, and solution processing: used for linings, coatings, and membranes.

Applications of PVDF

Beyond piping, PVDF's unusual mix of chemical stability, processability, and electroactive behavior has opened many material-level uses. For piping applications such as chemical dosing, wastewater, and high-purity lines, see our guide What Is PVDF Pipe?

Lithium-Ion Batteries

PVDF is the dominant polymer binder for electrodes in lithium-ion battery production. It binds active material well and swells little in the electrolyte. Battery-grade resin has tighter purity and particle-size specifications than industrial grades.

Filtration Membranes

PVDF membranes are used in microfiltration and ultrafiltration for water treatment, pharmaceutical filtration, and biotech work, valued for chemical durability and controllable porosity.

Architectural Coatings

PVDF-based coatings on metal cladding resist UV, fading, and chalking, and are often blended with acrylic resins. Service lives are measured in decades.

Wire and Cable Insulation

PVDF and its copolymers insulate wire and cable that must stay flexible and resist heat, chemicals, and flame.

Sensors and Piezoelectric Films

In its β phase PVDF generates a charge under stress or heat, so it is used in flexible sensors, transducers, and energy harvesting devices.

Chemical and High-Purity Processing

PVDF is also used for pumps, tank linings, and fluid-handling components in chemical, semiconductor, pharmaceutical, and water treatment plants. High-purity grades carry ultrapure water for semiconductor plants, pharmaceutical-grade water (including water for injection), and deionized water for analytical labs, and can handle ozone, hot water, and steam disinfection media.

PVDF Pipes, Fittings, and Valves

Piping is PVDF's best-known industrial form. For a buyer's guide to PVDF pipe, including chemical compatibility, temperature limits, and comparison with PVC, PPH, and metal pipe, read What Is PVDF Pipe?

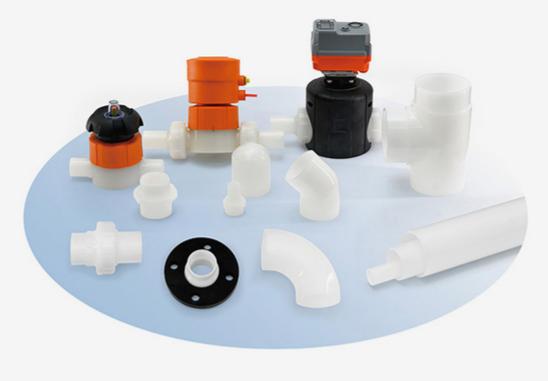

Huasheng's PVDF range covers PVDF pipes, PVDF fittings, and PVDF valves. Fittings typically include elbows, tees, reducers, unions, and flanges, while valves control corrosive and high-purity fluids.

Joining Methods

PVDF systems are commonly joined by butt fusion, socket fusion, infrared welding, or flanged connections. Huasheng's PVDF-UHP range uses infrared welding to the DVS 2207-6 standard. Follow the manufacturer's welding parameters, since poor joints are a common source of leaks.

How to Choose a PVDF Piping Supplier

Before ordering, confirm the medium, concentration, operating temperature and pressure, purity requirements, and joining method. Ask the supplier for material datasheets, pressure ratings, and welding guidelines.

Huasheng supplies PVDF pipes, fittings, and valves, along with PFA, PVC, CPVC, PPH, and PE piping systems and OEM service, so mixed-material projects can be sourced from one supplier.

For semiconductor, pharmaceutical, and ultrapure water systems, Huasheng's PVDF-UHP range is made from high-purity imported PVDF. Fittings and valves are injection molded and pipe is extruded. Production takes place in an ISO 14644-1 Class 7 clean room, while assembly, quality inspection, and 18 MΩ pure water cleaning are done in a Class 5 clean room. Inner surface roughness is Ra ≤ 0.35 µm for injection-molded parts and Ra ≤ 0.25 µm for extruded pipe. Every product carries a permanent marking with batch number, material, size, and pressure rating for traceability, and testing covers visual inspection, dimensional tolerance, pressure testing, and periodic precipitate testing according to SEMI F40/F57.

PVDF FAQs

Is PVDF the same as polyvinyl fluoride (PVF)?

No. PVF is made from vinyl fluoride. PVDF is made from vinylidene fluoride.

What is the maximum temperature for PVDF?

Typically from -20 °C up to 140 °C continuous service, depending on grade, pressure, and chemical environment.

What chemicals attack PVDF?

Hot concentrated sulfuric acid, hot amines, and polar aprotic solvents such as NMP, DMF, and DMSO.

PVDF vs PTFE: which should I choose?

PTFE is more inert and heat-resistant, but PVDF is stronger and easier to process and weld, which makes it the practical choice for most piping.

Can PVDF be recycled?

Yes, it can be melted and reprocessed, though collection options are limited.

Conclusion

PVDF combines chemical resistance, thermal stability, strength, and purity, which is why it replaces ordinary plastics in demanding systems. Looking for PVDF pipes, fittings, or valves? Request a sample, browse the E-catalog, or contact Huasheng for a quotation.
