Ball Valve Vs Diaphragm Valve: Differences, Comparison And Selection Guide

Introduction

Ball valves and diaphragm valves are widely used industrial valves for controlling fluid flow. Although both can provide reliable shut-off performance, they differ significantly in design, sealing method, flow control capability, and application range.

Choosing between a ball valve and a diaphragm valve depends on factors such as fluid characteristics, chemical compatibility, pressure, temperature, and cleanliness requirements.

Generally:

• Ball valves are suitable for fast shut-off, high flow, and general industrial applications.

• Diaphragm valves are preferred for corrosive chemicals, high-purity fluids, and semiconductor systems.

This guide explains the key differences between ball valves and diaphragm valves to help you select the right solution.

What Is a Ball Valve?

A ball valve uses a rotating ball with a flow passage to control fluid movement. By turning the handle or actuator 90 degrees, the valve can quickly open or close the pipeline.

Plastic ball valves made from materials such as PPH, PVC, and PVDF are commonly used in chemical, water treatment, and industrial piping systems due to their corrosion resistance and durability.

Main Advantages

• Fast quarter-turn operation

• High flow capacity with low pressure loss

• Simple structure and easy maintenance

Common Applications

• Water treatment systems

• General industrial pipelines

• Cooling and process systems

What Is a Diaphragm Valve?

A diaphragm valve controls fluid flow through a flexible diaphragm that separates the fluid from the internal operating components.

This design reduces contamination risks and makes diaphragm valves suitable for demanding applications requiring cleanliness and chemical resistance.

Common materials include:

• PPH

• PVDF

• PFA

Typical applications include:

• Semiconductor manufacturing

• Chemical delivery systems

• Pharmaceutical and high-purity applications

Main Advantages

• Excellent chemical resistance

• Better flow regulation capability

• Reduced risk of contamination

Ball Valve vs Diaphragm Valve: Key Differences

Ball Valve vs Diaphragm Valve: Which One Is Better?

There is no universal answer. The right choice depends on the operating environment.

Choose a Ball Valve If You Need:

• Fast opening and closing

• Large flow capacity

• Simple operation

• Low maintenance requirements

Ball valves are commonly used in general industrial systems where quick shut-off is the primary requirement.

Choose a Diaphragm Valve If You Need:

• High chemical resistance

• Precise flow adjustment

• High-purity fluid handling

• Better contamination control

Diaphragm valves are widely used in semiconductor, chemical, and pharmaceutical industries where system cleanliness is critical.

Plastic Ball Valve vs Plastic Diaphragm Valve

For corrosive and high-performance piping systems, plastic valves provide advantages over traditional metal valves, including better corrosion resistance and lightweight construction.

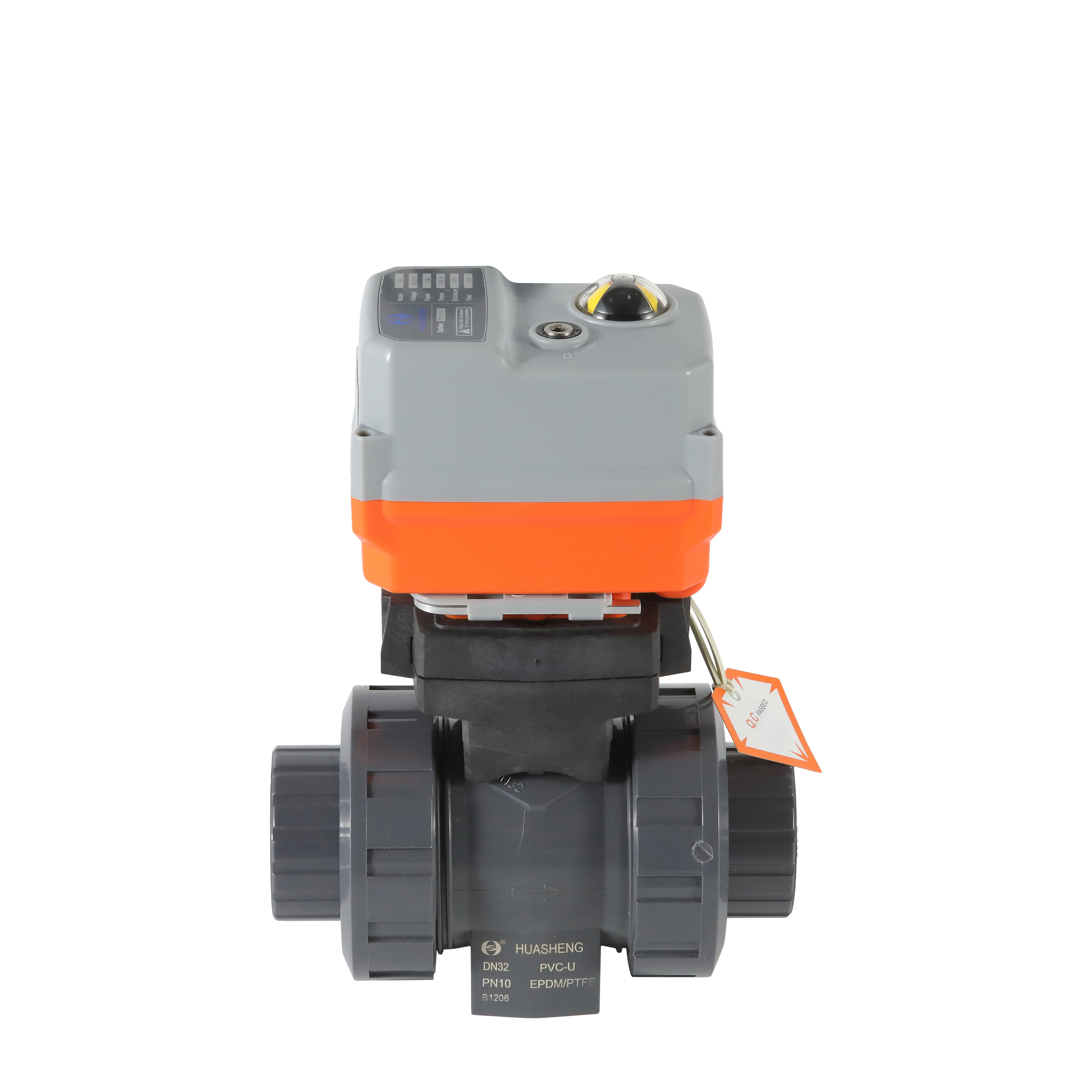

Plastic Ball Valve

Materials:

• PPH

• PVC

• PVDF

Advantages:

• High flow performance

• Quick operation

• Cost-effective solution

Suitable for:

• Industrial water systems

• Chemical pipelines

• General fluid control

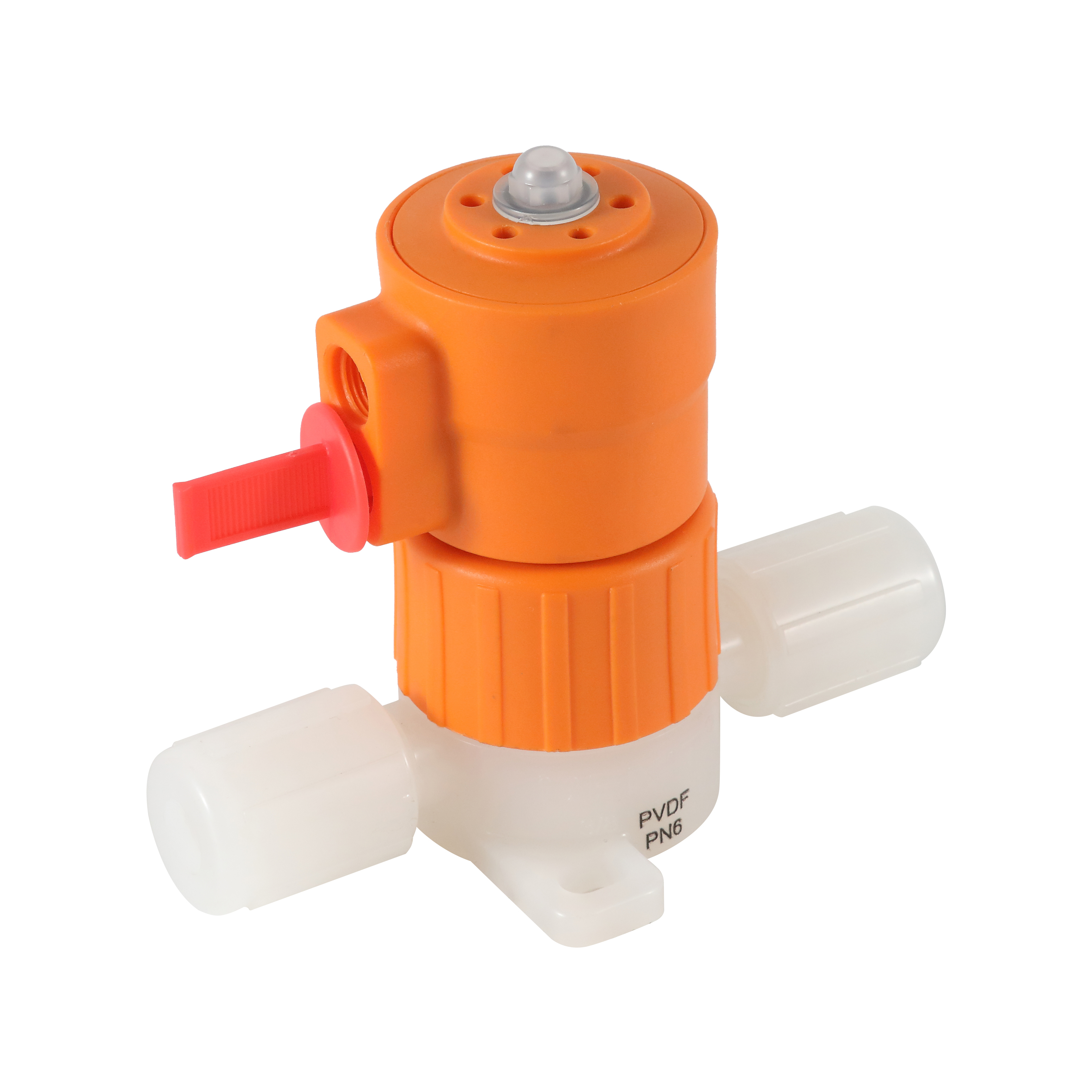

Plastic Diaphragm Valve

Materials:

• PPH

• PVDF

• PFA

Advantages:

• Excellent chemical compatibility

• High purity performance

• Reduced contamination risk

Suitable for:

• Semiconductor chemical delivery

• Ultra-pure piping systems

• Aggressive chemical applications

Application Comparison

How to Select the Right Valve?

Before choosing between a ball valve and diaphragm valve, consider:

1. Fluid Type

Check:

• Chemical concentration

• Corrosiveness

• Particle content

• Purity requirements

2. Operating Conditions

Evaluate:

• Pressure rating

• Temperature range

• Operating frequency

3. Control Requirements

• For simple ON/OFF control → Ball valve

• For flow adjustment and high purity → Diaphragm valve

Why Choose Huasheng Plastic Valves?

Huasheng specializes in advanced plastic piping systems and industrial valve solutions.

Our product range includes:

• PPH Ball Valves

• PPH Diaphragm Valves

• PVC Valves

• PVDF Valves

• PFA High Purity Valves

• Semiconductor Piping Systems

With advanced manufacturing technology and strict quality control, Huasheng provides reliable piping solutions for semiconductor, chemical, pharmaceutical, and other demanding industries.

FAQ

What is the main difference between a ball valve and a diaphragm valve?

A ball valve uses a rotating ball for flow control, while a diaphragm valve uses a flexible diaphragm to regulate and isolate the fluid.

Which valve is better for chemical applications?

Diaphragm valves made from PVDF or PFA are usually preferred for highly corrosive chemical applications due to their excellent chemical resistance.

Which valve is better for semiconductor systems?

Diaphragm valves are generally preferred because they provide better cleanliness and contamination control.

Which valve has better flow performance?

Ball valves typically provide higher flow capacity, while diaphragm valves offer better flow regulation.

Conclusion

Both ball valves and diaphragm valves have unique advantages.

Ball valves are ideal for applications requiring fast operation, high flow capacity, and simple maintenance.

Diaphragm valves are better suited for chemical, semiconductor, and high-purity applications where corrosion resistance and cleanliness are essential.

Understanding the differences between these two valve types helps engineers select the most suitable solution for their piping systems.
