Product Introduction :

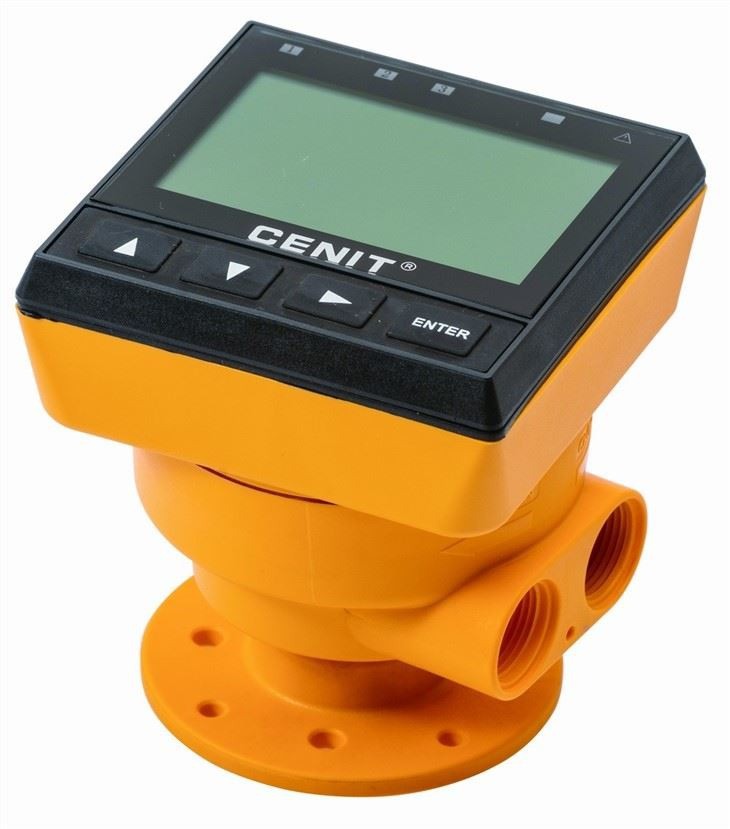

9988 super controller provides single-channel input, it can receive RS485 signal, current signal, frequency signal, through the acquisition of the above signals, it can complete the display control of flow, PH/ORP, conductivity, pressure, temperature, liquid level, salinity, dissolved oxygen, batch processing and other output 4-20mA signal sensors. It features a large (75x47mm) backlit display, with a bar graph at the top that allows you to observe the dynamics of the gauges clearly.
| Channel input | Single channel sensor | ||||||
| Signal input type | Digital signal | RS485 MODBUS RTU communication protocol signal | |||||
| Frequency signal | Range, 1-1500Hz | ||||||
| Current signal | Range, 4-20mA | ||||||
| Measurement parameters | Flow, PH/ORP, conductivity, pressure, temperature, liquid level, salinity, dissolved oxygen, batch processing and other output 4-20mA signal sensors. | ||||||
| Shell material | PBT | ||||||
| Display Screen | Shatterproof glass | ||||||
| Keyboard | 4 keys, membrane keys, injection molded silicone rubber seal | ||||||
| Display | LCD display, automatic backlight | ||||||
| Refresh rate | 1 second | ||||||
| Indication | Bar graph , open collector output, LED indicators for relay and alarm/error indication | ||||||

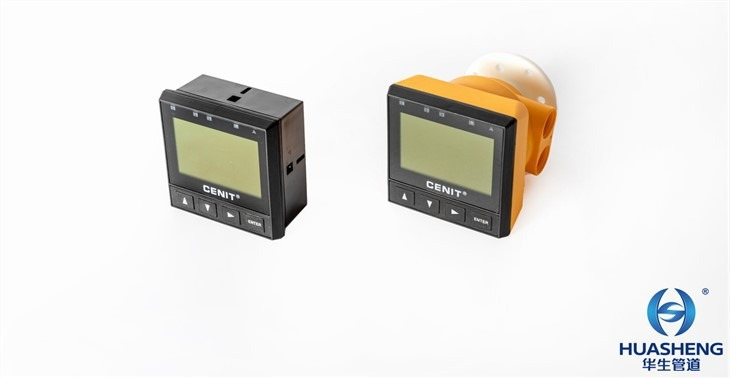

| Mounting | Cabinet mounting | Mounting hole opening size 92x92mm，appearance size of the instrument 99x99mm | |||||
| On-site mounting | Equipped with corresponding connector to combine with sensor | ||||||
| Wall mounting | Equipped with the corresponding installation box | ||||||
| Ambient temperature | -10-70℃ | ||||||
| Storage temperature | -15-85℃ | ||||||
| LCD operating temperature | -10-70℃ | ||||||
| IP level | Panel of cabinet-mounted version is IP65, the whole of On-site mounted version is IP65 | ||||||
| Terminal block | Shrapnel Press Terminal 28-12AWG | ||||||
| Supply voltage | 12-24V DC ±10% voltage regulation (power input with anti-reverse connection protection) | ||||||
| Supply voltage of sensor | 12-24V DC ±10% voltage regulation | ||||||
| Open collector output | 50mA DC | ||||||
| Relay power | 30V DC 1A two groups | ||||||
| Maximum pulse rate | 400 pulses/min | ||||||
| Proportional pulse width | 0.1-3200S | ||||||
| PWM | 0.1-320S | ||||||
| Output current | 4-20mA, passive, full scale adjustable and reverse output | ||||||
| Zero point | The factory setting is 4.0mA, and the user can fine-tune it at 3.8-5.0mA | ||||||
| Full point | The factory setting is 20.0mA, and the user can fine-tune it at 19.0-21.0mA | ||||||
| Precision | Maximum error value±32uA@25℃@24V DC | ||||||
| Resolution | 6uA | ||||||
| Refresh rate | 100mS | ||||||
| Current terminal for receiving sensor | 4-20mA，the receiving terminal does not provide external voltage | ||||||
