Butterfly Valve for Flow Control: Working Principle, Types & Selection Guide

Butterfly valves are widely used in industrial piping systems to control and isolate the flow of liquids and gases. Their compact design, lightweight construction, quick quarter-turn operation, and cost-effectiveness make them suitable for water treatment, chemical processing, HVAC, and industrial piping.

But can a butterfly valve be used for flow control?

Yes. Butterfly valves can provide effective flow regulation and throttling for many applications, although they are generally more suitable for basic or moderate flow control than high-precision process regulation.

How Does a Butterfly Valve Control Flow?

A butterfly valve uses a rotating disc to control the flow through a pipeline. When the disc is aligned with the flow direction, the valve is fully open. As the disc rotates, it gradually restricts the flow passage and reduces the flow rate.

The relationship between disc position and flow rate is not perfectly linear. Actual performance depends on valve size, pressure difference, fluid properties, and piping conditions.

Can Butterfly Valves Be Used for Throttling?

Yes. A butterfly valve can regulate flow by holding the disc at a partially open position.

They are suitable for basic to moderate flow control, particularly in:

• Water and wastewater treatment

• Chemical processing

• HVAC and cooling systems

• Industrial process piping

• Large-diameter pipelines

However, continuous throttling at very small openings may increase fluid velocity, turbulence, pressure drop, wear, or cavitation. For highly precise and continuous flow regulation, a dedicated control valve may be a better choice.

Manual, Pneumatic or Electric Butterfly Valve?

The operating method depends on the required level of automation.

Manual butterfly valves are suitable for simple systems. Pneumatic and electric butterfly valves are better suited to automated applications where the valve position needs to be controlled remotely or repeatedly.

How to Choose a Butterfly Valve for Flow Control

Before selecting a butterfly valve, consider the following factors:

1. Flow medium
Check whether the valve will handle water, chemicals, air, cooling fluids, or other media.

2. Pressure and temperature
Make sure the valve material and pressure rating are suitable for the operating conditions.

3. Required control accuracy
Determine whether the valve is needed for isolation, occasional throttling, general flow regulation, or automated control.

4. Valve material
PVC, PPH, and HT-PVC can be selected according to the fluid, temperature, and chemical compatibility requirements.

5. Valve size
Select the valve according to the required flow rate and pressure drop rather than simply matching the pipe diameter.

6. Actuation
Choose manual, pneumatic, or electric operation according to the automation requirements.

Advantages and Limitations of Butterfly Valves

Butterfly valves offer several advantages for industrial flow control:

• Compact and lightweight design

• Quick quarter-turn operation

• Cost-effective installation

• Easy automation

• Suitable for large-diameter pipelines

• Good corrosion resistance when thermoplastic materials are used

However, they generally provide less precise flow control than dedicated control valves. Incorrect sizing or continuous operation at very small openings can also increase wear and pressure-related problems.

Therefore, the valve should always be selected according to the actual operating conditions.

Butterfly Valve vs. Control Valve

For general flow adjustment, a butterfly valve is often a more economical solution. For applications requiring highly accurate flow regulation, a dedicated control valve may be more appropriate.

Applications of Butterfly Valves

Butterfly valves are commonly used in:

• Water and wastewater treatment

• Chemical processing

• HVAC and cooling systems

• Industrial process piping

• Mining and metallurgy

• Utility and infrastructure systems

Thermoplastic butterfly valves are particularly useful where corrosion resistance and lightweight construction are important.

Why Choose Huasheng Plastic Butterfly Valves?

Huasheng provides a range of thermoplastic valve and piping solutions, including PVC Butterfly Valves, PPH Valves, HT-PVC systems, and other plastic piping products.

Thermoplastic butterfly valves can offer corrosion resistance, lightweight construction, and good compatibility with plastic piping systems. They are suitable for many applications in water treatment, chemical processing, industrial utilities, and other corrosive environments.

By combining valves, pipes, and fittings made from compatible materials, Huasheng can provide complete thermoplastic piping solutions for different industrial applications.

Frequently Asked Questions

Can a butterfly valve regulate flow?

Yes. A butterfly valve regulates flow by changing the position of its disc and is suitable for basic to moderate flow control.

Are butterfly valves good for throttling?

Yes, but mainly for moderate throttling. Applications requiring highly precise flow control may require a dedicated control valve.

Can PVC butterfly valves be used for chemicals?

Yes, PVC butterfly valves can be used for compatible chemical media. The valve material, seat material, temperature, pressure, and chemical concentration should be checked before selection.

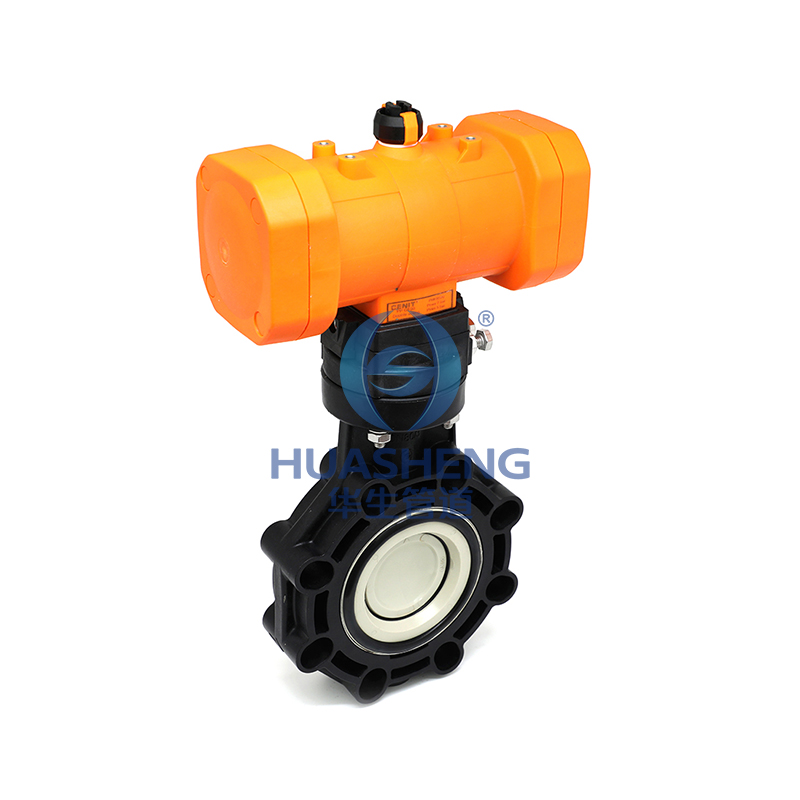

Is a pneumatic butterfly valve suitable for automated flow control?

Yes. Pneumatic butterfly valves are suitable for automated applications where fast operation and remote valve positioning are required.

Conclusion

Butterfly valves provide a compact, economical, and reliable solution for flow control and isolation in many industrial piping systems.

They are particularly suitable for basic to moderate flow regulation in water treatment, chemical processing, HVAC, and industrial applications. By selecting the appropriate material, size, valve type, and actuation method, a butterfly valve can provide effective and long-lasting flow control.

For highly precise process regulation, however, a dedicated control valve should be considered.
