Uhlobo lwe-PFA Dailter Sleeve-Insee-Inseed Type

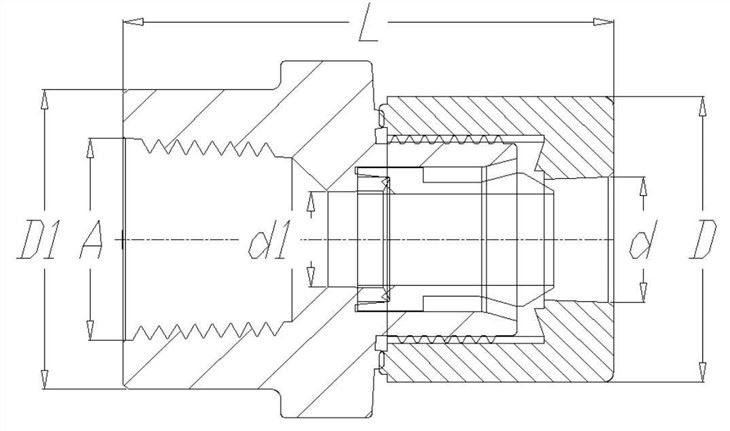

Ubukhulu bohlobo lwe-PFA Dailter Sleeve-Insert

Ubungako	Ubukhulu be-MM (intshi)
	D	d	d1	L	D1	A
I-CLQ1HF-1/4 '- MN	17 (0.67)	6.4 (0.25)	3.9 (0.15)	37.3 (1.47)	21.5 (0.85)	I-NPT1 / 4 '
I-CLQ1HF-3/8 'X1 / 2 ' - MN	23 (0.91)	9.7 (0.38)	6.6 (0.26)	47.2 (1.86)	31.5 (1.24)	I-NPT1 / 2 '
I-CLQ1HF-3/8 '- MN	23 (0.91)	9.7 (0.38)	6.6 (0.26)	47.2 (1.86)	26 (1.02)	NPT3 / 8 '
I-CLQ1HF-1/2 'X3 / 8 ' - MN	30 (1.18)	12.7 (0.5)	10.1 (0.4)	46 (1.81)	26 (1.02)	NPT3 / 8 '
I-CLQ1HF-1/2 'X3 / 4 ' - MN	30 (1.18)	12.7 (0.5)	10.1 (0.4)	52 (2.05)	38 (1.5)	I-NPT3 / 4 '
I-CLQ1HF-1/2 '- MN	30 (1.18)	12.7 (0.5)	8.9 (0.35)	50 (1.97)	31.5 (1.24)	I-NPT1 / 2 '
I-CLQ1HF-3/4 'X1 / 2 ' - MN	40.6 (1.6)	19 (0.75)	6.6 (0.26)	59.3 (2.33)	31.5 (1.24)	I-NPT1 / 2 '
I-CLQ1HF-3/4 '- MN	40.6 (1.6)	19 (0.75)	15.3 (0.6)	59.3 (2.33)	38 (1.5)	I-NPT3 / 4 '
I-CLQ1HF-3/4 'x1 ' - mn	40.6 (1.6)	19 (0.75)	16.2 (0.64)	67.3 (2.65)	45.5 (1.79)	NPT1 '
I-CLQ1HF-1 'x3 / 4 ' - MN	49 (1.93)	25.4 (1)	15.3 (0.6)	59.9 (2.36)	38 (1.5)	I-NPT3 / 4 '
Clq1hf-1 '- mn	49 (1.93)	25.4 (1)	20.6 (0.81)	67.9 (2.67)	45.5 (1.79)	NPT1 '
I-CLQ1HF-1/4 '- Mnu	17 (0.67)	6.4 (0.25)	3.9 (0.15)	37.3 (1.47)	21.5 (0.85)	R1 / 4 '
I-CLQ1HF-3/8 'x1 / 2 ' - Mnu	23 (0.91)	9.7 (0.38)	6.6 (0.26)	47.2 (1.86)	31.5 (1.24)	R1 / 2 '
I-CLQ1HF-3/8 '- Mnu	23 (0.91)	9.7 (0.38)	6.6 (0.26)	47.2 (1.86)	26 (1.02)	R3 / 8 '
I-CLQ1HF-1/2 'x3 / 8 ' - Mnu	30 (1.18)	12.7 (0.5)	10.1 (0.4)	46 (1.81)	26 (1.02)	R3 / 8 '
I-CLQ1HF-1/2 'x3 / 4 ' - Mnu	30 (1.18)	12.7 (0.5)	10.1 (0.4)	52 (2.05)	38 (1.5)	R3 / 4 '
I-CLQ1HF-1/2 '- Mnu	30 (1.18)	12.7 (0.5)	8.9 (0.35)	50 (1.97)	31.5 (1.24)	R1 / 2 '
I-CLQ1HF-3/4 'x1 / 2 ' - Mnu	40.6 (1.6)	19 (0.75)	6.6 (0.26)	59.3 (2.33)	31.5 (1.24)	R1 / 2 '
I-CLQ1HF-3/4 '- Mnu	40.6 (1.6)	19 (0.75)	15.3 (0.6)	59.3 (2.33)	38 (1.5)	R3 / 4 '
I-CLQ1HF-3/4 'x1 ' - Mnu	40.6 (1.6)	19 (0.75)	16.2 (0.64)	67.3 (2.65)	45.5 (1.79)	R1 '
I-CLQ1HF-1 'x3 / 4 ' - Mnu	49 (1.93)	25.4 (1)	15.3 (0.6)	59.9 (2.36)	38 (1.5)	R3 / 4 '
I-CLQ1HF-1 '- Mnu	49 (1.93)	25.4 (1)	20.6 (0.81)	67.9 (2.67)	45.5 (1.79)	R1 '
