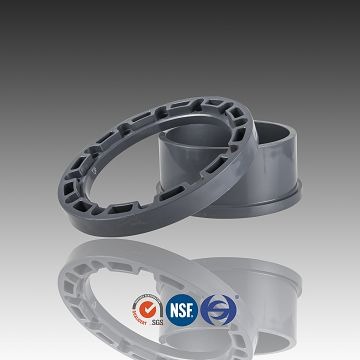

PVC Vanstone Flange, Yanki Biyu, Matsalolin Fitin Fitin Filastik na iya kaiwa PN16

Pn16 Matsa lamba PVC Daidaita Fitin Filastik VanStone Flange Bayanin Piece Biyu:

UPVC Vanstone Flange

1.Ayyukan Suna: UPVC Vanstone Flange

2.Material:UPVC

3.Size 50mm zuwa 500mm

4.Launi: Grey ko siffanta

5.Haɗa: Socket

6.Standard: DIN misali

7. Certificate: CE, ISO, SGS

Pn16 Matsi na PVC Fitting Fitting Plastic VanStone Flange Kashi Biyu Takaddun Takaddun Bincike (COA):

Certificate of Analysis (COA)
Samfurin: UPVC Flange+Ring 280mm PN16 SS				Kamfanin: Jiangsu Huasheng Plastics Co.,LTD
Saukewa: HST150426				Kwanan Ƙaddamarwa: 2016-5-26
Misali Qty: 10pcs/10pcs				Ranar Gwaji:2016-5-26

Takaddun shaida na HS20160502.
Dukiya	Naúrar	Abubuwan bukatu				Sakamako	Kimantawa
Bayyanar	___	Surfac na ciki da na waje e yakamata ya zama santsi, mai tsabta kuma free daga zira kwallaye, cavities da sauran lahani na saman				Santsi kuma m surface	KO
Gwajin Hydraulic (20 ℃, 1 hour)	___	D≤90 4.20×PN		Babu fashewa		Babu fashewa	KO
	___	D>90 3.36×PN
Yana gwada tanda (150 ℃, 1 hour)	___	Babu fashewa da blister				Babu fashewa da kumburi	KO
Gwajin Faduwa	___	Babu fashewa				Babu fashewa	KO
Sakamakon da ke sama ya dogara da ISO 1452.

Pn16 Matsa lamba PVC Daidaita Fitin Filastik VanStone Flange Madaidaicin Girman Piece Biyu:

Matsayin Girma (mm)
ITEM	20mm ku	25mm ku	32mm ku	40mm ku	50mm ku	63mm ku	75mm ku
Zurfin Kwanciya	16.0	18.5	22.0	26.0	31.0	37.5	43.5
Kaurin Jiki	1.5	2.0	2.4	3.0	3.7	4.7	5.6
ITEM	90mm ku	110mm	mm 160	200mm	mm 225	mm 280	mm 315
Zurfin Kwanciya	51.0	61.0	86.0	106.0	118.5	146.0	163.5
Kaurin Jiki	6.7	6.6	9.5	11.9	12.1	16.6	18.7

Zane Samfura

Pn16 Matsi na PVC Daidaita Fitin Filastik VanStone Flange Girman Yanki  Biyu

DN (D)	Girma (mm)
	D0	D1	D2	d0	d1	d2	d3	dw	da	T	H1	H	L	n
40(50)	150.00	110.00	62.60	61.60	50.35	49.90	45.00	74.00	18.00	31.20	2.50	18.00	33.70	4
50 (63)	165.00	125.00	78.40	77.40	63.40	62.90	57.00	93.00	18.00	37.70	2.50	20.00	41.20	4
65(75)	185.00	145.00	91.40	90.40	75.40	74.90	69.00	110.00	18.00	43.70	2.50	23.00	47.20	4
80 (90)	200.00	160.00	107.50	106.50	90.50	89.90	83.00	126.00	18.00	51.20	2.50	26.00	55.70	8
100 (110)	220.00	180.00	127.90	126.90	110.60	109.90	103.00	147.00	18.00	61.20	2.50	28.00	65.70	8
De125	250.00	210.00	145.00	144.00	125.70	124.90	117.00	164.00	18.00	68.70	2.50	29.00	74.20	8
125 (140)	250.00	210.00	162.30	161.30	140.75	139.90	131.50	181.00	18.00	76.20	2.50	30.00	81.70	8
150 (160)	285.00	240.00	186.30	184.30	160.80	159.90	151.00	204.00	22.00	86.20	3.00	32.00	92.20	8
De200	340.00	295.00	229.00	227.00	201.00	199.90	190.00	256.00	22.00	106.20	3.00	36.00	112.20	8
200 (225)	340.00	295.00	256.10	254.10	226.20	224.90	216.00	271.00	22.00	118.70	3.00	38.00	127.70	8
De250	395.00	350.00	283.30	281.30	251.30	249.90	239.50	310.00	22.00	131.20	3.50	40.00	138.20	12
250 (280)	398.00	351.50	308.00	305.50	281.50	280.15	272.00	325.00	22.00	147.00	10.00	35.00	159.00	12
300 (315)	445.00	400.00	356.60	354.60	316.70	314.90	302.00	373.00	22.00	167.70	5.00	44.00	175.70	12
350 (355)	510.00	450.00	393.00	391.00	356.80	355.00	326.00	417.00	24.00	184.00	32.00	40.00	197.00	16
400 (400)	570.00	500.00	444.00	442.00	402.00	400.00	369.80	453.00	24.00	204.20	40.00	44.00	226.00	16
De450	620.00	565.00	488.50	486.00	451.94	450.05	447.00	518.00	27.00	233.00	38.00	45.00	245.00	20
De500	670.00	620.00	541.00	536.50	502.80	500.60	596.00	573.00	27.00	256.00	38.00	50.00	268.00	20

Pn16 Matsi na PVC Daidaita Fitin Filastik VanStone Flange Jerin Marufi  Biyu

Bayani	Girman	PC/ctn	Nauyi (g/pcs)	Tsawon (cm)	Nisa (cm)	Tsayi (cm)
Vanstone flange	DN40	48	425.70	43.5	31	30
	DN50	42	588.50	48.5	36	32
	DN65	36	744.70	48.5	36	32
	DN80	30	951.50	53	38	31.5
	DN100	20	1193.50	45	45	36.5
	De125	12	1622.50	51.5	51.5	27.5
	DN125	12	1655.50	51.5	51.5	27.5
	DN150	6	2425.50	58	30	32
	De200	6	3811.50	69	35.5	37
	DN200	5	3932.50	69	35.5	37
	De250	3	5698.00	41.5	41.5	43
	DN250	3	4889.50	41	41	52.5
	DN300	3	7826.50	45.5	45.5	55.5
	DN350	2	0.00	53	53	42.5
	DN400	2	0.00	57	57	46
	DN450	1	0.00	64	64	27
	DN500	1	0.00	68.5	68.5	29.5

Huasheng Advantage

Gudanarwa:

Masu gudanarwa suna da ilimin ilimi na ƙasashen waje ko ƙwarewar aiki, suna gabatar da ƙwarewar gudanarwa na yau da kullun da fasahohin yanke ga ƙungiyar.

Injina:

Sama da injunan allura 200, kayan sarrafa injuna 80, gami da injunan da aka shigo da su daga Taiwan, Japan da Jamus

Kwarewa:

An kafa Huasheng a cikin 1988 wanda ke da fiye da shekaru 20 na gwaninta a cikin extrusion filastik da allura

Tabbacin inganci:

 24-hour Rigorous QC Team wanda ke bin tsarin sarrafa ingancin ISO 9001

Laboratory:

Tsarin tsari na zamani na software da kayan gwaji don R&D

An sanye shi da masana'anta ƙwararrun, Huasheng Plastic shine ɗayan mafi kyawun masana'anta a China waɗanda zasu iya ba ku pvc vanstone flange, yanki guda biyu, matsi mai dacewa da filastik na iya kaiwa pn16. Hakanan zamu iya ba ku shawarwarin farashi na pvc vanstone flange, yanki guda biyu, matsi mai dacewa da filastik na iya kaiwa pn16, maraba don siyan samfuran mu na musamman.
