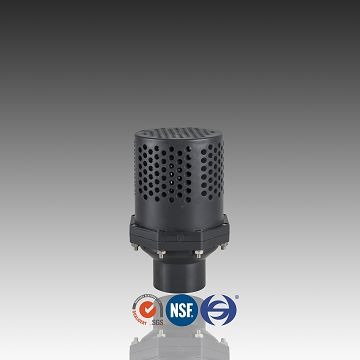

I-PVC Swinging Bottom Valve engu-1.0Mpa DIN Standard

Incazelo ye-  PVC Swinging Bottom Valve 1.0Mpa DIN Standard

Incazelo:
Igama	I-PVC Swinging Bottom Valve
Indaba	I-PVC/PVC-U
Usayizi	I-DN65-150
Umbala	Okumpunga okumnyama; eminye imibala
Ukuxhumana	Isokhethi; ukuxhumana kweglue
Ingcindezi	I-PN10, PN16
I gama le-brand:	I-Huasheng noma i-OEM
Izinga	I-DIN, GB
Isitifiketi	ISO9001,SGS,CE,NSF,ISO14001
Amalunga	Amajoyinti we-Thread / Solvent Welding Joints
Abezindaba	Amanzi/uketshezi



Ubukhulu be-PVC Swinging Bottom Valve 1.0Mpa DIN Standard

(I-DIN) I-VALVE
Ubukhulu (mm)								Iyasebenza Ingcindezi (㎏/C㎡)	Okuncane Okuvuliwe Ingcindezi (㎏/C㎡)
Usayizi we-DN (De)	d0	d1	d2	T	L1	L	H
65(75)	88.20	75.40	74.90	43.70	160.00	266.00	169.00	6	0.15-0.3
80(90)	104.60	90.50	89.90	51.20	167.50	273.50	169.00	6	0.15-0.3
100(110)	125.40	110.60	109.90	61.20	218.00	379.00	206.00	6	0.15-0.3
I-De125 (125)	145.50	125.70	124.90	68.70	215.50	386.50	206.00	6	0.15-0.3
125(140)	164.00	140.75	139.90	76.30	294.80	496.30	285.00	6	0.15-0.3
150(160)	186.00	160.80	159.90	87.00	304.50	505.80	285.00	6	0.15-0.3

I-DN65-De125
Cha.	Parte	Ubuningi	Okubalulekile
01	Khipha umzimba	1	I-PVC-U/PVC-C
02	Umzimba	1	I-PVC-U/PVC-C
03	Indandatho yerabha	1	I-EPDM/FPM
04	Ugibe	1	I-PVC-U/PVC-C
05	Ibhulokhi elungisiwe	1	Insimbi engagqwali
06	O-ring	1	I-EPDM/FPM
07	Ikhava	1	I-PVC-U/PVC-C
08	Blothi	8	Insimbi engagqwali
09	Nut	8	Insimbi engagqwali
10	I-Gasket	8	Insimbi engagqwali

I-DN125-DN150
Cha.	Parte	Ubuningi	Okubalulekile
01	Khipha umzimba	1	I-PVC-U/PVC-C
02	Umzimba	1	I-PVC-U/PVC-C
03	Indandatho yerabha	1	I-EPDM/FPM
04	Ugibe	1	I-PVC-U/PVC-C
05	Ibhulokhi elungisiwe	2	Insimbi engagqwali
06	O-ring	1	I-EPDM/FPM
07	Ikhava	1	I-PVC-U/PVC-C
08	Blothi	12	Insimbi engagqwali
09	Nut	12	Insimbi engagqwali
10	I-Gasket	12	Insimbi engagqwali

Imininingwane yokupakisha ye-  PVC Swinging Bottom Valve engu-1.0Mpa DIN Standard

Ukupakisha Imininingwane
Cha	Incazelo	Usayizi	Ama-PC/ctn	Isisindo (g/ama-pcs)	Ubude (cm)	Ububanzi (cm)	Ubude (cm)
1	I-valve yokuhlola i-swinging	DN65	8	1569.70	36	36	46
2		I-DN80	8	1727.00	36	36	46
3		I-DN100	4	2245.10	44	44	31
4		De125	4	4920.30	44	44	31
5		I-DN125	1	2982.10	30	30	41
6		I-DN150	1	7593.30	30	30	41

Izinto zobuchwepheshe

Izinto zobuchwepheshe
I-PVC	i-polyvinyl chloride
I-CPVC	i-polyvinyl chloride ehlanganisiwe
I-UPVC	i-polyvinyl chlorde engafakwanga
I-DIN	Deutsches Institut für Normung eV
I-ANSI	I-American National Standard Institute
I-JIS	Amazinga Wezimboni ZaseJapan
CNS	Amazinga Ezwe LaseShayina
GB	Amazinga kazwelonke ayimpoqo
ISO	Inhlangano Yamazinga Omhlaba
I-AU	I-Australia Standard
I-ASTM	I-American Society for Testing and Materials
SGS	I-Société Generale de Surveillance SA
I-NSF	INational Sanitation Foundation

Imininingwane ye-PVC Swinging Bottom Valve 1.0Mpa DIN Standard

UPVC AMApayipi FITTINGS WONYAWO VALVE

1.IFACTORY

2.IZIMALI:I-PVC-U/PVC-C PURE

3.USIZI:75mm UKUYA KU-160mm

4.IWARRANTY:50YEARS

Ukupakisha Nokulethwa

Imininingwane Yokupakisha: Kubandakanya ukupakishwa kwebhokisi, imininingwane eyengeziwe ngokwezidingo zamakhasimende

Imininingwane Yokulethwa: Kungakapheli izinsuku eziyi-10-20 ngemuva kokuthola idiphozithi; kuncike enanini le-oda

Izici ze-PVC Swinging Bottom Valve 1.0Mpa DIN Standard

1.enempilo futhi engenabo ubuthi

2.elula ukufaka kanye nezindleko zokwakha eziphansi;

3.imibala ehlukene iyatholakala

4.impilo ende

Igumbi lokubonisa

I-Huasheng Advantage

Ukuphatha:

Abalawuli banesizinda semfundo yaphesheya kwezilwandle noma okuhlangenwe nakho kokusebenza, bethula amakhono okuphatha akamuva kanye nobuchwepheshe obuphambili eqenjini.

Imishini:

Imishini yokujova engaphezu kuka-200, imishini yokucubungula engu-80, kuhlanganise nemishini engeniswe ivela eTaiwan, Japan naseJalimane.

Isipiliyoni:

I-Huasheng yasungulwa ngo-1988 eyayineminyaka engaphezu kwengu-20 yokuhlangenwe nakho kwe-plastic extrusion kanye nomjovo

Ukuqinisekisa ikhwalithi:

 Ithimba le-QC lamahora angama-24 elilandela uhlelo lokuphatha ikhwalithi ye-ISO 9001

Ilabhorethri:

Isistimu eyindingilizi yesofthiwe esesikhathini samanje nezinto zokuhlola ze-R&D

Ifakwe ifektri yobuchwepheshe, i-Huasheng Plastic ingomunye wabakhiqizi abahamba phambili e-China abangakunikeza i-pvc swinging bottom valve 1.0mpa din standard. Singakunikeza nokubonisana kohlu lwamanani we-pvc swinging bottom valve 1.0mpa din standard, wamukelekile ukuthenga imikhiqizo yethu eyenziwe ngokwezifiso.
