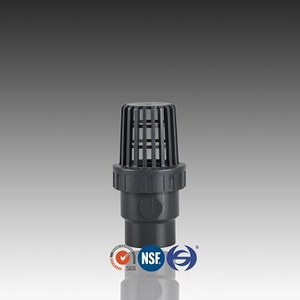

PVC Swinging Bottom Valve 1.0Mpa DIN Standard

Bayanin PVC  Swinging Bottom Valve 1.0Mpa DIN Standard

Bayani:
Sunan	PVC Swinging Bottom Valve
Abun	PVC/PVC-U
Girman Girman	Saukewa: DN65-150
Launi	Dark launin toka; sauran launuka
Haɗin kai	Socket; manne haɗi
Matsin lamba	PN10, PN16
Sunan Alama:	Huasheng ko OEM
The Standard	DIN, GB
Takaddun shaida	ISO9001, SGS, CE, NSF, ISO14001
Hanyoyin haɗin gwiwa	Haɗin Haɗin Zarya / Narke Haɗin Welding
Kafofin yada labarai	Ruwa/ruwa



Girman PVC Swinging Bottom Valve 1.0Mpa DIN Standard

(DIN) VALVE
Girma (mm)								Aiki Matsi (㎏/C㎡)	Mafi ƙarancin Buɗewa Matsi (㎏/C㎡)
Girman DN (De)	d0	d1	d2	T	L1	L	H
65(75)	88.20	75.40	74.90	43.70	160.00	266.00	169.00	6	0.15 zuwa 0.3
80 (90)	104.60	90.50	89.90	51.20	167.50	273.50	169.00	6	0.15 zuwa 0.3
100 (110)	125.40	110.60	109.90	61.20	218.00	379.00	206.00	6	0.15 zuwa 0.3
Daga 125 (125)	145.50	125.70	124.90	68.70	215.50	386.50	206.00	6	0.15 zuwa 0.3
125 (140)	164.00	140.75	139.90	76.30	294.80	496.30	285.00	6	0.15 zuwa 0.3
150 (160)	186.00	160.80	159.90	87.00	304.50	505.80	285.00	6	0.15 zuwa 0.3

Saukewa: DN65-De125
A'a.	Bangaranci	Yawan	Kayan abu
01	Ruwan jiki	1	PVC-U/PVC-C
02	Jiki	1	PVC-U/PVC-C
03	Zoben roba	1	EPDM/FPM
04	Tarko	1	PVC-U/PVC-C
05	Kafaffen toshe	1	Bakin Karfe
06	O-ring	1	EPDM/FPM
07	Rufewa	1	PVC-U/PVC-C
08	Goge	8	Bakin Karfe
09	Kwaya	8	Bakin Karfe
10	Gasket	8	Bakin Karfe

Saukewa: DN125-DN150
A'a.	Bangaranci	Yawan	Kayan abu
01	Ruwan jiki	1	PVC-U/PVC-C
02	Jiki	1	PVC-U/PVC-C
03	Zoben roba	1	EPDM/FPM
04	Tarko	1	PVC-U/PVC-C
05	Kafaffen toshe	2	Bakin Karfe
06	O-ring	1	EPDM/FPM
07	Rufewa	1	PVC-U/PVC-C
08	Goge	12	Bakin Karfe
09	Kwaya	12	Bakin Karfe
10	Gasket	12	Bakin Karfe

Cikakkun bayanan tattarawa na  PVC Swinging Bottom Valve 1.0Mpa DIN Standard

Cikakkun bayanai
A'a	Bayani	Girman	PC/ctn	Nauyi (g/pcs)	Tsawon (cm)	Nisa (cm)	Tsayi (cm)
1	Bawul ɗin dubawa na lilo	DN65	8	1569.70	36	36	46
2		DN80	8	1727.00	36	36	46
3		DN100	4	2245.10	44	44	31
4		De125	4	4920.30	44	44	31
5		DN125	1	2982.10	30	30	41
6		DN150	1	7593.30	30	30	41

Abubuwan sana'a

Abubuwan sana'a
PVC	polyvinyl chloride
Farashin CPVC	chlorinated polyvinyl chloride
Farashin UPVC	polyvinyl chlorde ba tare da filastik ba
DIN	Deutsches Institut für Normung eV
ANSI	Cibiyar Matsayin Kasa ta Amurka
JIS	Matsayin Masana'antu na Jafananci
CNS	Matsayin Ƙasar Sinawa
GB	Matsayin ƙasa na wajibi na ƙasa
ISO	Ƙungiyar Ƙididdiga ta Duniya
AU	Australiya Standard
ASTM	Ƙungiyar Gwaji da Kayayyakin Amirka
Farashin SGS	Societe Generale de Surveillance SA
Farashin NSF	Gidauniyar tsaftar muhalli ta kasa

Bayani dalla-dalla na PVC Swinging Bottom Valve 1.0Mpa DIN Standard

UPVC PIPE FITTINGS FOOT valv

1.FARKO

2.MATERIAL:PURE PVC-U/PVC-C

3.GIRMAN:75mm ZUWA 160mm

4.WARRANTY: SHEKARU 50

Marufi & Bayarwa

Cikakkun marufi: Ciki har da kwalin kwali, ƙarin cikakkun bayanai bisa ga buƙatun abokan ciniki

Bayanin Isarwa: Kwanaki 10-20 bayan karɓar ajiya; ya dogara da adadin tsari

Siffofin PVC Swinging Bottom Valve 1.0Mpa DIN Standard

1.lafiya da mara guba

2.mai dacewa don shigarwa da ƙananan farashin gini;

3. launuka daban-daban yana samuwa

4.tsawon rai

nuna dakin

Huasheng Advantage

Gudanarwa:

Masu gudanarwa suna da ilimin ilimi na ƙasashen waje ko ƙwarewar aiki, suna gabatar da ƙwarewar gudanarwa na yau da kullun da fasahohin yanke ga ƙungiyar.

Injina:

Sama da injunan allura 200, kayan sarrafa injuna 80, gami da injunan da aka shigo da su daga Taiwan, Japan da Jamus

Kwarewa:

An kafa Huasheng a cikin 1988 wanda ke da fiye da shekaru 20 na gwaninta a cikin extrusion filastik da allura

Tabbacin inganci:

 24-hour Rigorous QC Team wanda ke bin tsarin sarrafa ingancin ISO 9001

Laboratory:

Tsarin tsari na zamani na software da kayan gwaji don R&D

Sanye take da ƙwararrun masana'anta, Huasheng Plastics yana ɗaya daga cikin mafi kyawun masana'anta a China waɗanda zasu iya ba ku pvc swinging kasa bawul 1.0mpa din misali. Hakanan zamu iya ba ku shawarwarin farashi na pvc swinging kasa bawul 1.0mpa din misali, maraba don siyan samfuran mu na musamman.
