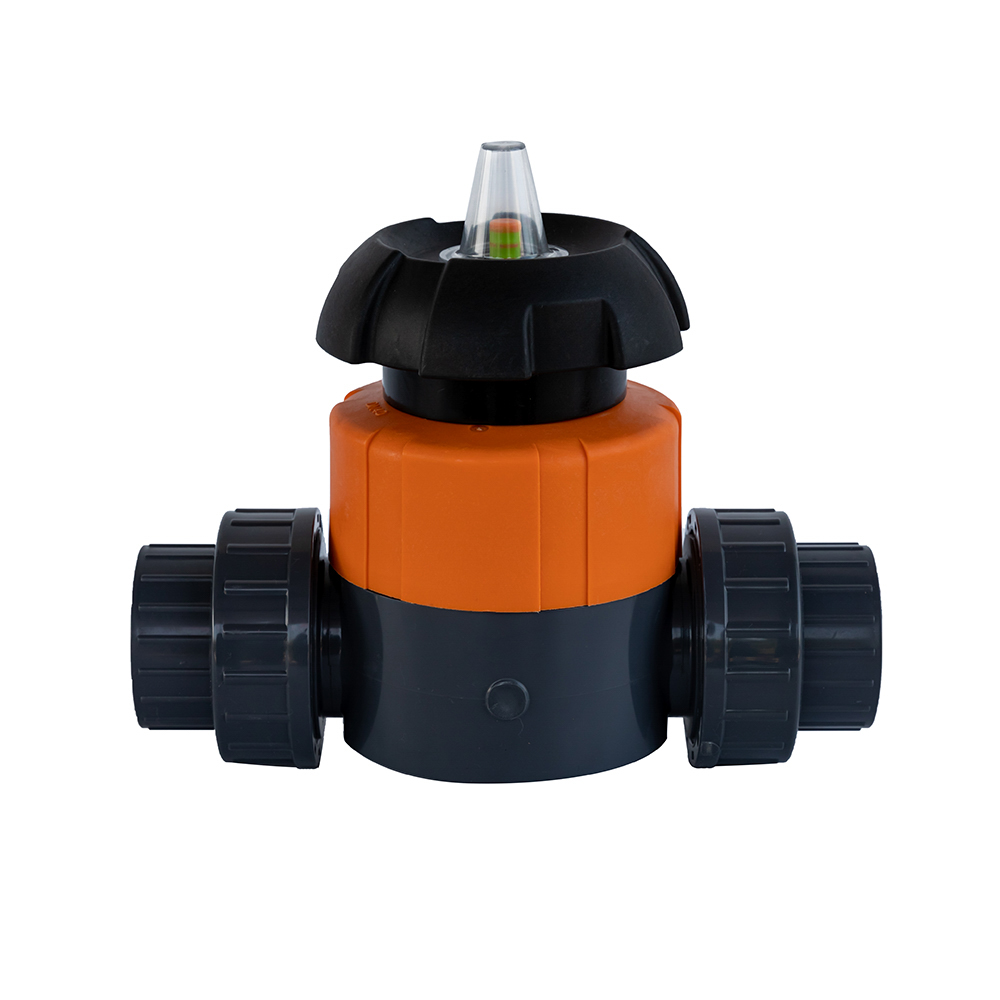

CPVC True Union Diaphragm Valve Matsi 1.0Mpa

Bayanin ion na CPVC True Union Diaphragm Valve Matsi 1.0Mpa

Bayani:
Sunan samfur	CPVC True Union Diaphgram Valve
Babban abu	Farashin CPVC
Kewayon ƙayyadaddun bayanai	1/2 zuwa 2'
Bawul launi	Hasken launin toka da orange; sauran launuka
Don haɗawa	Socket; Haɗin manne; siminti
Kewayon matsin lamba	Duba teburin
Zazzabi na Mai jarida:	Na al'ada
Ma'auni	ASTM/ANSI/DIN
Takaddun shaida	ISO14001
Hadin gwiwa	Mai narkewa
Mai jarida	Ruwa

Girman CPVC True Union Diaphragm Valve Matsi 1.0Mpa

(DIN) WUTA
Girma (mm)										Aiki Matsin lamba (㎏/C㎡)
Girman DN (De)	D	D1	d1	d2	d	H1	H	T	L
15 (20)	46.5	80	20.3	19.95	16	14	90	16.5	128	10.0
20 (25)	53.5	80	25.3	24.95	20	18	102	19.0	152	10.0
25 (32)	64	94	32.3	31.9	26	21	119	22.5	166	10.0
32 (40)	74.5	117	40.35	39.9	34	26	126	26.5	192	10.0
40(50)	85	117	50.35	49.9	43	33	139	31.5	222	7.0
50 (63)	100	152	63.4	62.9	56	39	172	36.7	266	7.0

(ASTM) WUTA
Girma (mm)										Aiki Matsin lamba (㎏/C㎡)
Girman (')	D	D1	d1	d2	d	H1	H	T	L
1/2'	46.5	80	21.54	21.23	16	14	90	23.22	141	10.0
3/4'	53.5	80	26.87	26.57	20	18	102	26.4	166.8	10.0
1'	64	94	33.66	33.27	26	21	119	29.57	180	10.0
1-1/4'	74.5	117	42.42	42.04	34	26	126	32.75	204	10.0
1-1/2'	85	117	48.56	48.11	43	33	139	35.93	231	7.0
2'	100	152	60.63	60.17	56	39	172	39.1	272	7.0

TASKAR KAYAN

TASKAR KAYAN
A'a.	Sassan	Yawan	Kayan abu
1	Faucet Nut	2.0	PVC-C
2	O-ring	2.0	EPDM/FPM
3	Faucet(DIN)	2.0	PVC-C
4	Jiki	1.0	PVC-C
5	diaphragm	1.0	EPDM/FPM
6	Diaphragm ruwa hatimin hannun riga	1.0	PP+GF30%
7	Hex bola	1.0	Bakin Karfe
8	Hex kwaya	1.0	Bakin Karfe
9	Saka Disc	1.0	Brass (H62)
10	Toshe makullin hannu	1.0	PP
11	Tushen nuni (duka saka)	1.0	PP
12	Dabarun hannu	1.0	PP+GF30%
13	Kwayar jiki	1.0	PP+GF30%
14	Kara	1.0	Bakin Karfe 304
15	∮ 4 pin	1.0	Bakin Karfe
16	Tushen dunƙule saka	1.0	Brass (H62)
17	Tushen dunƙule	1.0	PP+GF30%
18	Disc	1.0	PP+GF30%
19	Jiki goro located kaya	1.0	PP+GF30%
