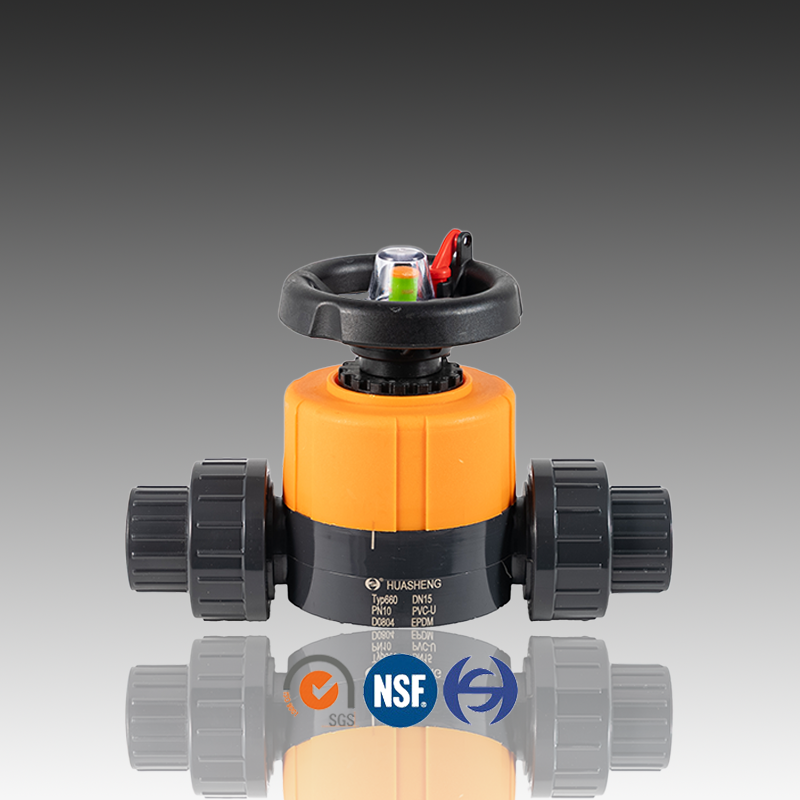

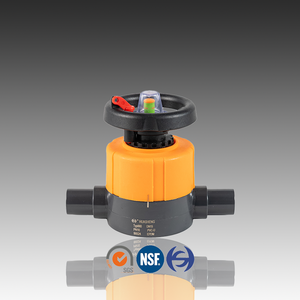

CPVC True Union Diaphragm Valve Pressure 1.0Mpa

CPVC True Union Diaphragm Valve Pressure 1.0Mpa

Features 1. Electro and Mechanical Polishing 2. Sealing Material: PTFE, NBR, EPDM, FPM 3. Manufacture Standard: GB, DIN, ISO, SMS 4. Zero Leakage 5. Connection: Welding, Clamp 6. Tpye: Double-acting, Single-acting Factory Introduction: PVC Diaphragm Valve Manufacturer

Description

Description:
Name of productCPVC True Union Diaphgram Valve
Main materialCPVC/PVC-C
Specification range20mm-63mm;1/2'-2"
Valve colorLight Grey and orange; other colors
To connectSocket; Glue connection; cement
Pressure rangemedium pressure; PN10, PN16
Temperature of Media:Medium Temperature
The standardsASTM/ANSI/GB/DIN/ISO4422
CertificatesISO14001,SGS,CE, ISO9001,NSF
JointsSolvent Welding Joints
MediaWater/liquid



(DIN)VALVE
Dimension(mm)

Working

Pressure

 (㎏/C㎡)

Size DN

(De)

DD1d1d2dH1HTL
15(20)46.50 80.00 20.30 19.95 16.00 14.00 90.00 16.50 128.00 10
20(25)53.50 80.00 25.30 24.95 20.00 18.00 102.00 19.00 152.00 10
25(32)64.00 94.00 32.30 31.90 26.00 21.00 119.00 22.50 166.00 10
32(40)74.50 117.00 40.35 39.90 34.00 26.00 126.00 26.50 192.00 10
40(50)85.00 117.00 50.35 49.90 43.00 33.00 139.00 31.50 222.00 7
50(63)100.00 152.00 63.40 62.90 56.00 39.00 172.00 36.70 266.00 7



(ASTM)VALVE
Dimension(mm)

Working

Pressure

(㎏/C㎡)

Size

(")

DD1d1d2dH1HTL
1/2"46.50 80.00 21.54 21.23 16.00 14.00 90.00 23.22 141.00 10
3/4"53.50 80.00 26.87 26.57 20.00 18.00 102.00 26.40 166.80 10
1"64.00 94.00 33.66 33.27 26.00 21.00 119.00 29.57 180.00 10
1-1/4"74.50 117.00 42.42 42.04 34.00 26.00 126.00 32.75 204.00 10
1-1/2"85.00 117.00 48.56 48.11 43.00 33.00 139.00 35.93 231.00 7
2"100.00 152.00 60.63 60.17 56.00 39.00 172.00 39.10 272.00 7



MATERIAL TABLE
No.PartsQuantityMaterial
01Faucet Nut2PVC-U/PVC-C
02O-ring2EPDM/FPM
03Faucet(DIN)2PVC-U/PVC-C
04Body1PVC-U/PVC-C
05Diaphragm1EPDM/FPM
06Diaphragm water seal sleeve1PP+GF30%
07Hex bolt1Stainless Steel
08Hex nut1Stainless Steel
09Disc Insert1Brass(H62)
10Handwheel lock block1PP
11Indicator stem(both insert)1PP
12Handwheel1PP+GF30%
13Body nut1PP+GF30%
14Stem1Stainless Steel 304
15∮4 pins1Stainless Steel
16Stem screw insert1Brass(H62)
17Stem screw1PP+GF40%
18Disc1PP+GF30%
19Body nut located gear1PP+GF30%



Packing Details
NoDescriptionSizePcs/ctnWeight (g/pcs)

Length

(cm)

Width

(cm)

Height (cm)
1True union diaphragm valveDN1554272.91 47.53234.5
2DN2030412.50 484135
3DN2518551.43 413646.5
4DN3212880.00 48.53632
5DN4041111.66 303041
6DN5062260.60 483144



Certificates
M.L.S.E.PRCManufacture License of Special Equitment People's Republic of China
HPNMERCHigh Polymer New Material Engineering Research Center
JPPSERCJiangsu Plastic Piping System Engineering Research Center
GB/T24001 / ISO14001:2004
Certificate of Environment Management System
GB/T19001-2008 / ISO9001-2008Certificate of Approval Certificate
NPQTCNational Quality Supervision Testing Centre of Plastic Product
SGSSociety General de Surveillance
C.PQI&SIChangzhou Product Quality Inspection & Supervision Institute
CMC CERTIFICATION FOR MEASUREMENT CONTRACT
SISanitary Inspection Report

Features
1. Electro and Mechanical Polishing
2. Sealing Material: PTFE, NBR, EPDM, FPM
3. Manufacture Standard: GB, DIN, ISO, SMS
4. Zero Leakage
5. Connection: Welding, Clamp
6. Tpye: Double-acting, Single-acting
Factory Introduction: PVC Diaphragm Valve Manufacturer
1. Factory History: nearly 30 years manufacture valves and 20 years export experience.
2. Factory Size: 250000 squre meters
3. Factory Location: Changzhou, Jiangsu, China
4. Management Certification: ISO 9001:2000, ISO14001 and CE certificates.
1.Description
1)Material  U-PVC
2)Application  water supply,water draining,farming,irrigation,aquiculture,and water treatement and other fields
3)Size 20mm-63mm(Standard: DIN,ASTM, ANSI)
4)Color  grey/china-orange
5) Temperature resistance water temperature from -5° to  80°
6)Warranty long service life

Equipped with a professional factory, Huasheng Plastic is one of the best manufacturers in China who can offer you cpvc true union diaphragm valve pressure 1.0mpa. We can also offer you the pricelist consultation of cpvc true union diaphragm valve pressure 1.0mpa, welcome to buy our customized products.
