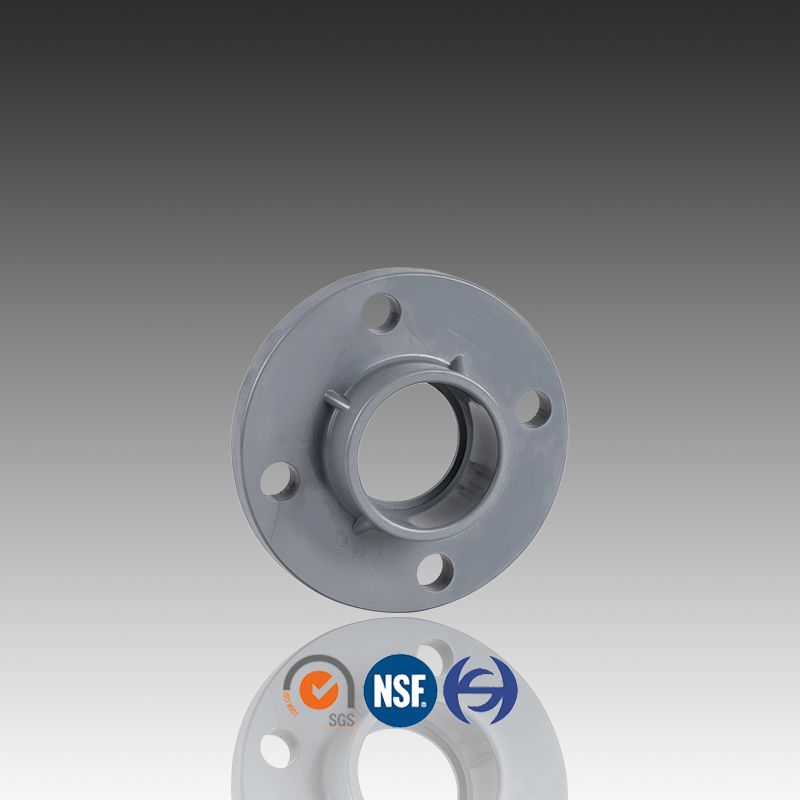

SCH 80 CPVC One Piece Plastic Flange

SCH 80 CPVC One Piece Plastic Flange

SCH 80 CPVC One-Piece Flange 1.Items Name:SCH 80 CPVC One-Piece Flange 2.Material:chlorinated polyvinyl chloride 3.Size:1/2 inch to 8 inch 4.Color: Gray or customize 5.Connect:Socket Glue 6.Standard:ASTM D CPVC SCH80

Description

SCH 80 CPVC One-Piece Flange
1.Items Name:SCH 80 CPVC One-Piece Flange
2.Material:chlorinated polyvinyl chloride
3.Size:1/2 inch to 8 inch
4.Color: Gray or customize
5.Connect:Socket Glue
6.Standard:ASTM D CPVC SCH80
7.Certificate:NSF,ISO,SGS


SCH 80 PVC One-Piece Flange,PVC/C,SCH 80 ASTM F439 CPVC fittings drawing

dn

(*")

size(mm)
D0D1d0d1d2d3daTHLn
1/2"89.00 60.30 29.54 21.54 21.23 17.00 16.00 23.22 13.00 27.72
3/4"89.00 69.85 35.27 26.87 26.57 22.50 16.00 26.40 14.00 30.90
1"108.00 79.38 43.66 33.66 33.27 29.00 16.00 29.57 15.00 34.10
1-1/4"117.00 88.90 53.02 42.42 42.04 38.00 16.00 32.75 15.00 38.75
1-1/2"127.00 98.43 59.86 48.56 48.11 43.00 16.00 35.93 17.00 41.95
2"152.00 120.65 72.23 60.63 60.17 55.00 19.00 39.10 19.00 46.10
2-1/2"178.00 139.70 88.00 73.38 72.85 67.50 19.00 45.45 20.00 53.00
3"191.00 152.40 105.30 89.31 88.70 83.00 19.00 48.63 20.50 57.15
4"229.00 190.50 132.00 114.76 114.07 106.00 19.00 58.15 21.00 66.65
5"254.00 216.00 162.00 141.81 141.04 133.00 22.00 67.68 23.50 77.50
6"284.00 241.30 190.85 168.83 168.00 160.00 22.00 77.20 26.50 88.20
8"343.00 298.45 245.84 219.84 218.69 208.00 22.00 102.60 27.00 113.60



SizePcs/ctnWeight   (g/pcs)Length (cm)Width (cm)Height  (cm)
1/2"175106.89363621
3/4"144175.63323228
1"96189363621
1-1/4"84218.4393028.5
1-1/2"58295.47363626
2"45459.06414124
2-1/2"24654.57373433
3"24990.345035.524
4"161435.242.542.528
5"121950.3947.547.525.5
6"102680.8653.544.530
8"64322.56535.535


Equipped with a professional factory, Huasheng Pipeline is one of the best manufacturers in China who can offer you SCH 80 CPVC one piece plastic flange. We can also offer you the price list consultation of SCH 80 CPVC one piece plastic flange, welcome to buy our customized products.
